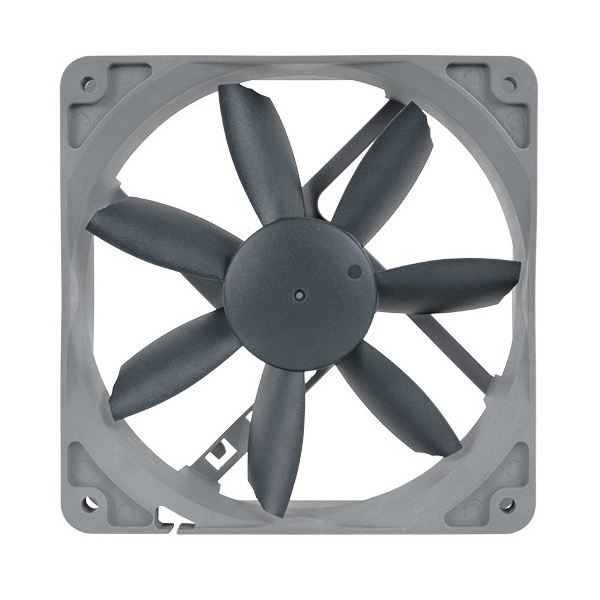

Noctua 120mm Nf-s12b Redux Edition 700rpm Fan Nf-s12b-redux-700

$36.00
SKU: 172902
MPN: NF-S12B-REDUX-700 Link
Manufacturer: http://www.noctua.at/
Brand: Noctua
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

Specifically designed for low impedance case cooling applications, the classic NF-S12B is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-S12B premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-S12B redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The extra slow 700rpm version is ideal for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation.

Details
　
Proven NF-S12B design

Proven NF-S12B design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-S12B. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-S12B has become an established reference for quiet 120mm fans.
　
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
　
Designed for efficient case ventilation

Designed for efficient case ventilation

Typical PC case ventilation applications require high airflow but only medium static pressure. The NF-S12B has been specifically designed for high airflow efficiency and low noise in order to provide best results in these so called low impedance applications.
　
Bevelled Blade Tips

Bevelled Blade Tips

Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fan's outstanding efficiency.
　
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
　
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
　
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
　
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
　

　

　

FAN Specification
　
Size
120x120x25 mm
Connector
3-Pin
Bearing
SSO-Bearing
Rotational Speed (+/- 10%)
700 RPM
Airflow
56,9 m³/h
Acoustical Noise
6,8 dB(A)
Static Pressure
0,44 mm H₂O
Max. Input Power
0,6 W
Max. Input Current
0,05 A
Voltage
12 V
MTBF
> 150.000 h
Scope of Delivery
  • Fan
  • 4 Fan Screws
Warranty
6 years
Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

The NF-S12B Redux Edition is a next generation quiet fan featuring Noctuas advanced SCD2 technology as well as a highly optimised blade geometry with bevelled blade tips that greatly improves its airflow efficiency. Topped off with Noctuas time tested SSO bearing and 6 years warranty, the NF-S12B Redux Edition is a premium choice for the highest demands.

Highlights:

* Manufacturers model code: NF-S12B Redux Edition.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 700.
* CFM: 33.4.
* dBA: 6.8.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 3Pin.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
