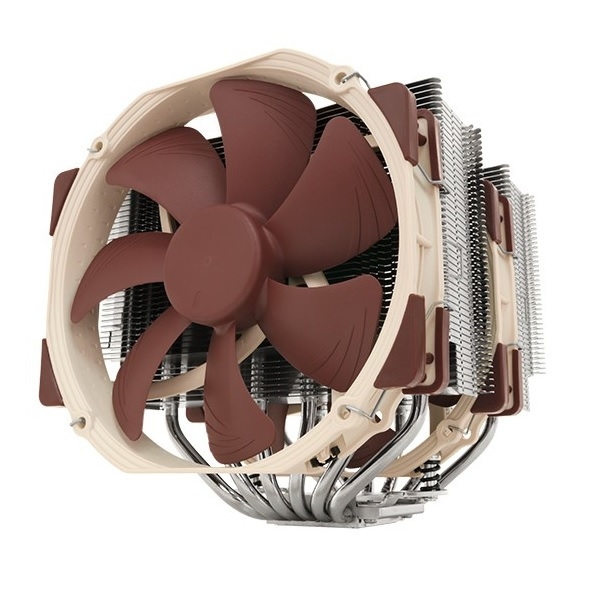

Noctua Nh-d15 Multi Socket Pwm Cpu Cooler Nh-d15

$168.00

SKU:	170949
MPN:	NH-D15 Link
Manufacturer:	http://www.noctua.at/main.php?show=start
Brand:	Noctua
Availability:	Preorder 2-3 weeks
Fright Estimate

Description

▼

Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua’s flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14’s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.

Details

Based on the award-winning NH-D14

Noctua's NH-D14 has received more than 350 awards and recommendations from leading international hardware websites and magazines, making it one of the most successful premium heatsinks ever built. With its expanded layout and dual NF-A15 fans, the NH-D15 further improves the D14's much acclaimed quiet cooling performance.

6 heatpipe dual tower design

As compared to conventional single tower heatinks, the NH-D15's fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.

Widened fin stack and expanded heatpipe layout

Compared to the NH-D14, the NH-D15's fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15's superior efficiency.

High RAM compatibility in single fan mode

Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).*

Dual NF-A15 140mm fans

The NH-D15 features two of Noctua's premium class NF-A15 140mm fans. Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.

PWM support and Low-Noise Adaptor

The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Excellent component cooling

Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2™ mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting included with the NH-D15 guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with past and future sockets

Complying with the open SecuFirm™ standard, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 thermal compound

Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability, which makes it suitable for use in professional server and workstation environments.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15's feature an MTBF rating of more than 150.000 hours and the entire NH-D15 package comes with a full 6-year manufacturer's warranty.

Specifications

▼

Cooler Specifications

Socket compatibility

Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)

Height (without fan)

160 mm

Width (without fan)

150 mm

Depth (without fan)

135 mm

Height (with fan)

165 mm

Width (with fan)

150 mm

Depth (with fan)

161 mm

Weight (without fan)

980 g

Weight (with fan/s)

1320 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see TDP guide

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of Delivery

2x NF-A15 PWM premium fan
2x Low-Noise Adaptor (L.N.A.)
Y-cable
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge

Warranty

6 Years

FAN Specification

Model

2x Noctua NF-A15 PWM

Bearing

SSO2

Max. Rotational Speed (+/- 10%)

1500 RPM

Max. Rotational Speed with L.N.A. (+/- 10%)

1200 RPM

Min. Rotational Speed (PWM, +/-20%)

300 RPM

Max. Airflow

140,2 m³/h

Max. Airflow with L.N.A.

115,5 m³/h

Max. Acoustical Noise

24,6 dB(A)

Max. Acoustical Noise with L.N.A.

19,2 dB(A)

Input Power

1,56 W

Voltage Range

12 V

MTBF

> 150.000 h

Vendor Info

▼

Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

Highlights:

* Manufacturers model code: NH-D15.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* Cooler type: Tower.
* Number of heatpipes: 6.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 165mm.
* Cooler width: 150mm.
* Cooler length: 161mm.
* Intel socket compatibility: Intel LGA201x & 115x.
* AMD socket compatibility: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+.
* Included fan model(s): 2x 140mm Noctua NF-A15 PWM.
* Warranty: 6 years.

Would you like to know more? Check out the product introduction page, detailed specifications, infosheet & product FAQ.
