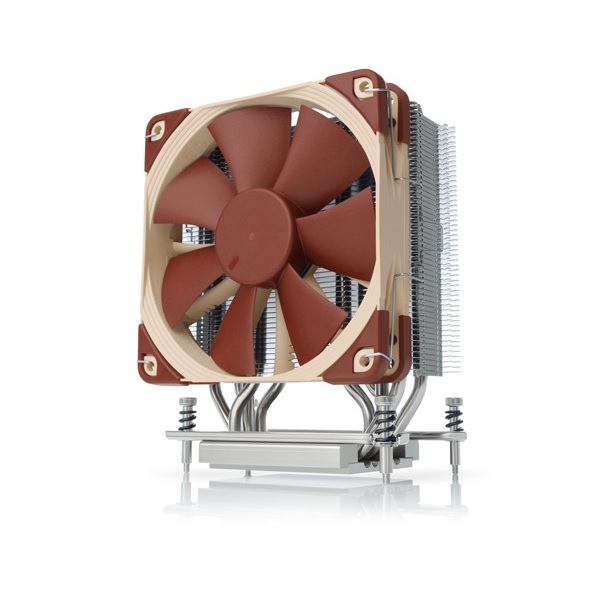

Noctua Nh-u12s Tr4-sp3 Cpu Cooler Nh-u12s-tr4-sp3

$126.00

SKU:	252251
MPN:	NH-U12S-TR4-SP3 Link
Manufacturer:	http://noctua.at/en/
Brand:	Noctua
Warranty:	1 Year Manufacturer's return to base
Availability:	In stock
Fright Estimate

Description

▼

The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow™ fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.

Details

Award-winning NH-U12 series

The NH-U12S is the latest version of Noctua's award-winning NH-U12 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.

100% RAM compatibility

Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.*

Classic 120mm tower size for excellent overall compatibility

Standing 158mm tall, the NH-U12S is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on standard ATX or Micro-ATX motherboards, ensuring best compatibility with SLI and CrossFire setups.

NF-F12 120mm Focused Flow™ fan

Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.

PWM support and Low-Noise Adaptor

The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Anti-vibration pads and fan-clips for second NF-F12 (optional)

For users who want to achieve even better performance by adding a second, optionalNF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.

SecuFirm2™ mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011, LGA2066 and AMD (AM3+, AM2+, FM1, FM2, FM2+), the SecuFirm2™ mounting included with the NH-U12S guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with past and future sockets

Complying with the open SecuFirm™ standard, the NH-U12S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 thermal compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTTF rating of more than 150.000 hours and the entire NH-U12S package comes with a full 6-year manufacturer's warranty.

Specifications

▼

Cooler Specification

Socket compatibility

Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 with NM-AM4-UxS

Height (without fan)

158 mm

Width (without fan)

125 mm

Depth (without fan)

45 mm

Height (with fan)

158 mm

Width (with fan)

125 mm

Depth (with fan)

71 mm

Weight (without fan)

580 g

Weight (with fan/s)

755 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see TDP guide

Fan compatibility

120x120x25

Scope of delivery

NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge

Warranty

6 Years

FAN Specification

Model

Noctua NF-F12 PWM

Bearing

SSO2

Max. Rotational Speed (+/- 10%)

1500 RPM

Max. Rotational Speed with L.N.A. (+/- 10%)

1200 RPM

Min. Rotational Speed (PWM, +/-20%)

300 RPM

Max. Airflow

93,4 m³/h

Max. Airflow with L.N.A.

74,3 m³/h

Max. Acoustical Noise

22,4 dB(A)

Max. Acoustical Noise with L.N.A.

18,6 dB(A)

Voltage Range

12 V

MTTF

> 150.000 h

Vendor Info

▼

Manufacturer: Noctua. Continuing the legacy of Noctuas classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMDs TR4/SP3 platform (Ryzen Threadripper/Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket TR4/SP3. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctuas proven NT-H1 thermal compound and a full 6-year manufacturers warranty, the NH-U12S TR4-SP3 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for high-end TR4/SP3 systems.

Highlights:

* Cooler height: 158mm.
* Cooler width: 125mm.
* Cooler length: 71mm.
* Socket compatibility: AMD TR4/SP3.
* Included fan model(s): 1x Noctua NF-F12 PWM.
* Warranty: 6 years.

Would you like to know more? Check out the full product information page.
