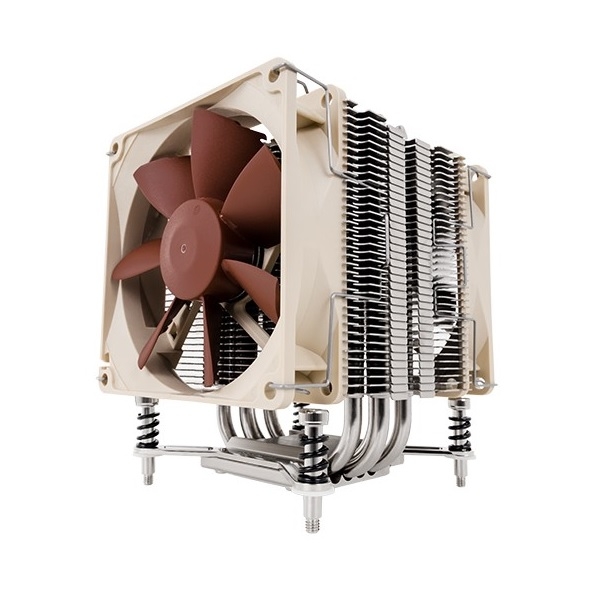

Noctua Nh-u9dx I4 Cpu Cooler For Xeon Sockets Lga2011, Lga1356 & Lga1366 Nh-u9dxi4

$110.00

SKU:	153373
MPN:	NH-U9DXi4 Link
Manufacturer:	http://www.noctua.at/main.php?show=start
Brand:	Noctua
Availability:	Preorder 2-3 weeks
Fright Estimate

Description

▼

Noctua's DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366based Xeon platforms and the 9cm model NH-U9DX i4 comes equipped with two of Noctua’s award-winningNF-B9 premium fans with PWM for automatic speed control. Standing 125mm tall, the NH-U9DX i4 combines outstanding quiet cooling efficiency with full 4U compatibility. Fitted with the professional SecuFirm2™ mounting system and bundled with Noctua's industrial-grade NT-H1 thermal compound, the NH-U9DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.

Details

Award-winning NH-U series

The NH-U9DX i4 is based on the latest version of Noctua's award-winning NH-U9 coolers. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.

4U Compatibility

Sporting four heatpipes, a surface area of more than 3800cm² and two premium grade 92mm fans, the NH-U9DX i4 provides a significant upgrade in quiet cooling performance compared to common 2U solutions. At the same time, its 125mm height makes it fully compatible with standard 4U cases.

2x NF-B9 92mm Premium Fan

The award-winning NF-B9 92mm premium fan features Noctua's renowned SSO bearing as well as advanced aerodynamic optimisations such as Bevelled Blade Tips and Vortex-Control Notches. In order to achieve its superb quiet cooling capability, the NH-U9DX i4 comes equipped with two NF-B9 fans in a push/pull setup.

PWM support and Low-Noise Adaptor

The NF-B9 92mm fans supplied with the NH-U9DX i4 support PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1600 to 1300rpm using the supplied Low-Noise Adaptors for even quieter operation.

SecuFirm2™ mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel's LGA2011 (both Square and Narrow ILM), LGA1356 and LGA1366 Xeon platforms, the SecuFirm2™ mounting included with the NH-U9DX i4 guarantees perfect contact pressure and maximum convenience on all sockets.

NT-H1 thermal compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-B9 models feature an MTBF rating of more than 150.000 hours and the entire NH-U9DX i4 package comes with a full 6-year manufacturer's warranty.

Specifications

▼

Cooler Specifications

Socket compatibility

Intel LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)

Height (without fan)

125 mm

Width (without fan)

95 mm

Depth (without fan)

71 mm

Height (with fan)

125 mm

Width (with fan)

95 mm

Depth (with fan)

95/120* mm

Weight (without fan)

460 g

Weight (with fan/s)

550/640* g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Fan compatibility

92x92x25

Scope of Delivery

2x NF-B9 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit

Warranty

6 Years

FAN Specification

Model

Noctua NF-B9 PWM

Bearing

SSO2

Max. Rotational Speed (+/- 10%)

1600 RPM

Max. Rotational Speed with L.N.A. (+/- 10%)

1300 RPM

Min. Rotational Speed (PWM, +/-20%)

300 RPM

Max. Airflow

64,3 m³/h

Max. Airflow with L.N.A.

52,6 m³/h

Max. Acoustical Noise

17,6 dB(A)

Max. Acoustical Noise with L.N.A.

13,1 dB(A)

Input Power

0,96 W

Voltage Range

12 V

MTBF

> 150.000 h

Vendor Info

▼

Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

Noctuas DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 9cm model NH-U9DX i4 comes equipped with two of Noctuas award winning NF-B9 premium fans with PWM for automatic speed control. Standing 125mm tall, the NH-U9DX i4 combines outstanding quiet cooling efficiency with full 4U compatibility. Fitted with the professional SecuFirm2 mounting system and bundled with Noctuas industrial grade NT-H1 thermal compound, the NH-U9DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.

Highlights:

* Manufacturers model code: NH-U9DX i4.
* Market orientation: Server.
* Cooler type: Tower.
* Number of heatpipes: 4.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 125mm.
* Cooler width: 95mm.
* Cooler length: 120mm.
* Intel socket compatibility: Intel LGA2011 (Square & Narrow ILM), LGA1356 & LGA1366 with Xeon backplate.
* Included fan model(s): 2x 90mm Noctua NF-B9 PWM.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
