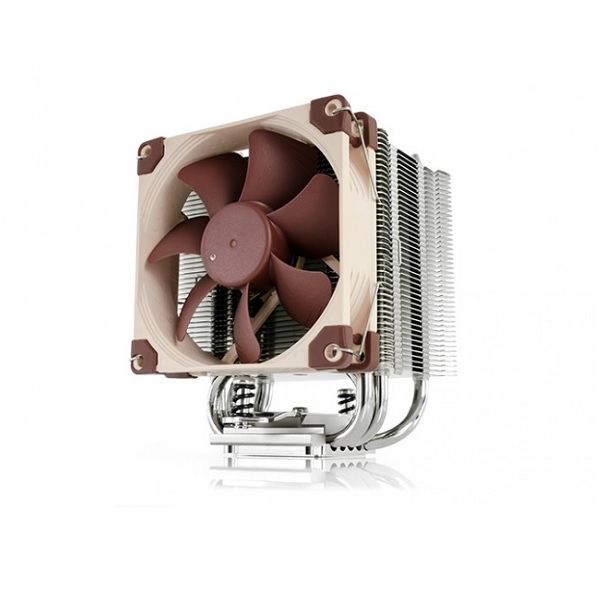

Noctua Nh-u9s Multi Socket Cpu Cooler Nh-u9s

$113.00

SKU:	187324
MPN:	NH-U9S Link
Manufacturer:	http://www.noctua.at/main.php?show=start
Brand:	Noctua
Availability:	In stock
Fright Estimate

Description

▼

Continuing the renowned legacy of Noctua’s award-winning NH-U9 series, the NH-U9S is a premium quality quiet CPU cooler in classic 9cm size. Its asymmetrical design with 5 heatpipes not only provides even better cooling performance than the previous generation but also improves compatibility: Thanks to its 95x95mm footprint, the NH-U9S clears the RAM and PCIe slots on all Intel and most AMD based mainboards, including µATX and ITX. Combined with its 125mm height, this makes the NH-U9S a highly versatile solution with excellent case, RAM and PCIe compatibility. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U9S is a deluxe choice through and through.

Details

Award-winning NH-U series

The NH-U9S stems from Noctua's award-winning NH-U9 series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 800 awards and recommendations from leading international hardware websites and magazines.

S version with better compatibility

Like its bigger brothers NH-U12S and NH-U14S, the NH-U9S features a revised, slimmer layout: Whereas the NH-U9B SE2 was 120mm deep with its two stock fans, the NH-U9S is asymmetrically built and measures only 95mm with its single, more efficient NF-A9 fan, thus providing better performance and compatibility at the same time.

100% RAM compatibility

With its 95x95mm footprint, the NH-U9S does not overhang the RAM slots on current Intel and most AMD mainboards. This gives the user full access to the memory modules and guarantees 100% compatibility with tall heatspreaders or optional memory fans.*

100% compatibility with PCIe cards on mini-ITX

Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-U9S provides full compatibility with PCIe cards, be it on ATX, microATX or ITX.

NF-A9 premium fan

The highly optimised features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, which allows it to further improve the renowned efficiency of Noctua's previous 92mm models and contributes to the NH-U9S' superior cooling performance.

PWM support and Low-Noise Adaptor

The NF-A9 92mm fan supplied with the NH-U9S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 2000 to 1550rpm using the supplied Low-Noise Adaptor for even quieter operation.

Dual fan ready

The NH-U9S includes an extra set of fan mounting clips for users who want to achieve even better cooling performance by adding a second, optional NF-A9 PWM fan in order to create a push/pull setup. Using the y-cable supplied with the NF-A9 PWM retail fan, both fans can be connected to one CPU fan header.

SecuFirm2™ mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3) and AMD (AM2+, AM3, AM3+, FM1, FM2, FM2+), the SecuFirm2™ mounting included with the NH-U9S guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with past and future sockets

Complying with the open SecuFirm™ standard, the NH-U9S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 thermal compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9 features an MTBF rating of more than 150.000 hours and the entire NH-U9S package comes with a full 6-year manufacturer’s warranty.

Specifications

▼

Cooler Specifications

Socket compatibility

Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)

Height (without fan)

125

Width (without fan)

Depth (without fan)

Height (with fan)

125

Width (with fan)

Depth (with fan)

Weight (without fan)

524

Weight (with fan/s)

618

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see TDP guide

Fan compatibility

92x92x25

Scope of Delivery

NF-A9 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Fan-clips for second NF-A9
Noctua Metal Case-Badge

Warranty

6 Years

FAN Specification

Model

Noctua NF-A9 PWM

Bearing

SSO2

Max. Rotational Speed (+/- 10%)

2000

Max. Rotational Speed with L.N.A. (+/- 10%)

1550

Max. Airflow

78,9

Max. Airflow with L.N.A.

62,6

Max. Acoustical Noise

22,8

Max. Acoustical Noise with L.N.A.

16,3

Input Power

1,2

Voltage Range

MTBF

> 150.000

Vendor Info

▼

Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

Highlights:

* Manufacturers model code: NH-U9S.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* Cooler type: Tower.
* Number of heatpipes: 5.
* Heatsink material: Copper (base & heatpipes), aluminium (fins), soldered joints & nickel plating.
* Cooler height: 125mm.
* Cooler width: 95mm.
* Cooler length: 95mm.
* Intel socket compatibility: Intel LGA201x & 115x.
* AMD socket compatibility: AM2, AM2+, AM3, AM3+, FM1, FM2.
* Included fan model(s): 92mm Noctua NF-A9 PWM.
* Warranty: 6 years.

Would you like to know more? Check out the product introduction page, detailed specifications, infosheet & product FAQ.
