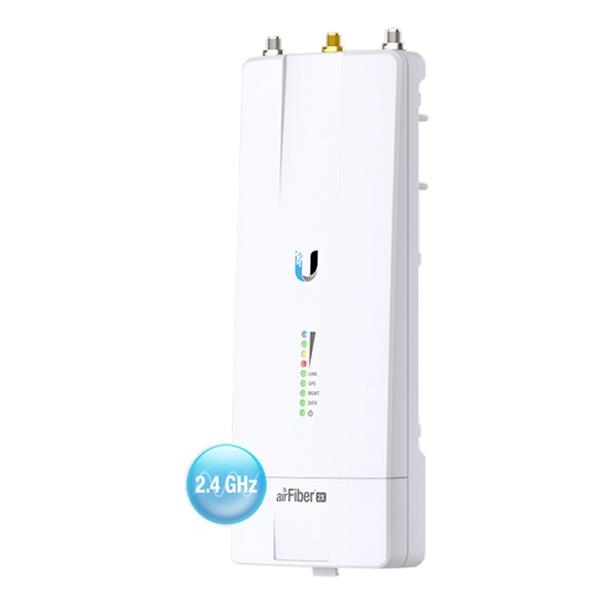

Ubiquiti Airfiber 2x 500mbps+ 2.4ghz Carrier Backhaul Radio - 200+ Km Af-2x

$684.00
SKU: 258884
MPN: AF-2X Link
Manufacturer: https://www.ubnt.com/
Brand: Ubiquiti
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

Engineered for Performance

Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

　
　

Deployment Flexibility

The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.

　

Carrier Backhaul for the World

Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.

　

Optimal Operation and Channel Configuration

Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Model Comparison

　
AF-2X
AF-2X
AF-3X
AF-3X
AF-4X
AF-4X
AF-5X
AF-5X
Frequency 2.4 GHz 3 GHz 4 GHz 5 GHz
Throughput 500+ Mbps 500+ Mbps 500+ Mbps 500+ Mbps
Range 200+ km 200+ km 200+ km 200+ km
Ubiquiti airFiber® X, is a 2 GHz carrier backhaul radio. It is a modular Ubiquiti airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas. Building upon the proven design of the airMAX® Rocket™ system, airFiber X allows you to customize Ubiquiti airFiber backhaul links or upgrade existing Rocket Point to Point (PtP) links. The first airFiber X model is the AF-2X model for use in the 5 GHz frequency band.

Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.

Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Up to 500+ Mbps Real Throughput, Up to 200+ km Range
2.4, 3, or 5 GHz (Full-Band Certification including DFS)
Ubiquiti’s INVICTUS™ Custom Silicon

Features
Engineered for Performance
Ultra-Low Latency with HDD Technology
Co-Location
GPS Synchronization
Clean Power Output
