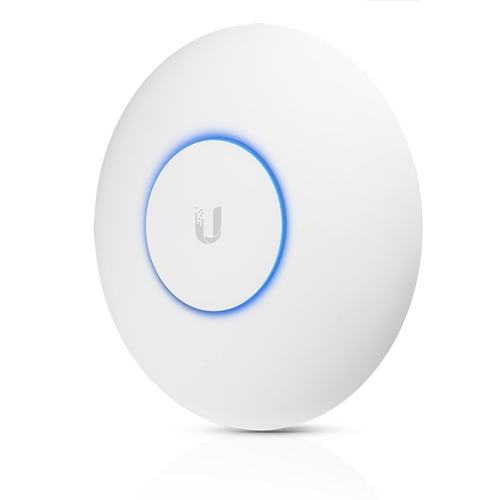

Ubiquiti 802.11ac Wave2 Quad-radio Wifi Ap With 10 Gigabit Ethernet And 1 500 Client Capacity Support
| SKU: | 264455 |
|---|---|
| MPN: | UAP-XG-AU Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Create a Future-Proof 10 Gigabit End-to-End UniFi Network
The Highest Performing WiFi AP in the World
High Density Tests conducted on Access Points where done in a high density environment with 100 WiFi clients running the test concurrently
Spectral Security
The UniFi WiFi AP delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.
Advanced Features in UniFi Controller
Featuring an intuitive user interface, the UniFi Controller conducts device discovery, provisioning, monitoring, and configuration for centralized control of UniFi devices.
Vendor Info
• Simultaneous Tri-Band 4x4 Multi-User MIMO
• Dedicated Security Radio with Persistent Threat Management
• Real-Time Spectrum and airTime Utilization Engine
Deploy the UniFi XG AP in very high-density environments requiring maximum wireless performance.
The UniFi XG AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3bt PoE compatibility.
Quad-Radio Capabilities Three client radios deliver unparalleled Wi-Fi performance while a dedicated security radio provides persistent threat management.
Superior Processing Power The UniFi XG AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser‑equipped AP.
10G and 1G Ethernet Connectivity Designed to be a 10G Ethernet backhaul, the primary port carries both data and PoE, while the secondary Gigabit Ethernet port is for bridging and also supports PoE input.
Power over Ethernet (PoE) Standard The UniFi XG AP can be powered by an 802.3bt PoE compliant switch.
Easy Mounting Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.
LED The unique LED provisioning ring provides administrator location tracking and alerts for each device.
Dimensions 228 x 228 x 50 mm (8.98 x 8.98 x 1.97")
Weight
With Mounting Kits
1.20 kg (2.65 lb)
1.35 kg (2.98 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port
Buttons Reset
Power Method 802.3bt PoE
Supported Voltage Range 44 to 57VDC
Power Supply PoE Injector 50VDC, 1.2A Gigabit
Power Save Supported
Maximum Power Consumption 31W
Radios 2.4 GHz, (2) 5 GHz, Security
Maximum TX Power
2.4 GHz
5 GHz
25 dBm
25 dBm
Antennas
2.4 GHz
5 GHz
(2) Du
