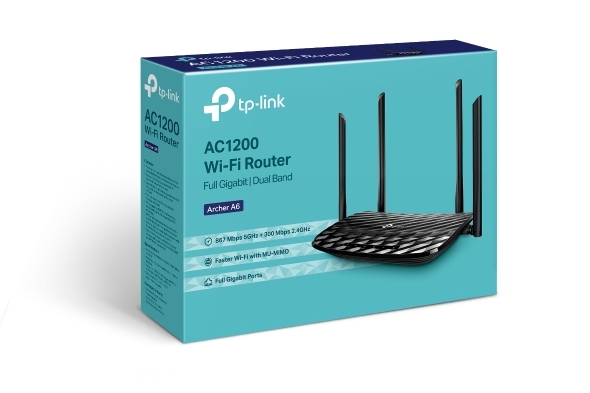

main product photo

Tp-Link Archer A6 Ac1200 Wireless Mu-Mimo Gigabit Router Archer A6

$104.00
SKU: 287288
MPN: Archer A6
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
Untitled 1
SYSTEM
System Requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
ENVIRONMENT
Operating Temperature 0℃~40℃ (32℉ ~104℉)
Storage Temperature -40℃~70℃ (-40℉ ~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
PACKAGE CONTENTS
Package Contents Wireless Router Archer A6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
HARDWARE FEATURES
Ports 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port
Button Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button
Power Supply 12V/1A
Dimensions ( W x D x H ) 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
Antenna 4 Fixed External Antennas and 1 Internal Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz:
11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm；
Transmit Power CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)
FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz)
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
WAN Type Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual
Access), BigPond
Management Access Control, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
Access Control Parental Controls, Local Management Control, Host List, White List, Black List
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4GHz guest network, 5GHz guest network
VPN Server OpenVPN，PPTP VPN
