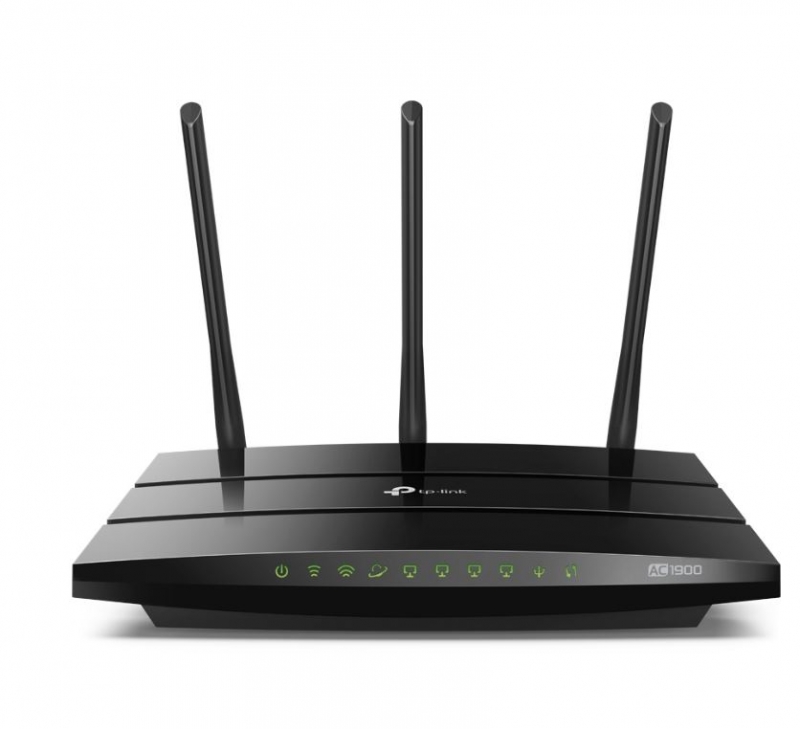

main product photo

TP-Link Archer A9 Ac1900 Wireless Mu-Mimo Gigabit Router Archer A9

Special Price $158.00 Regular Price $182.00
SKU: 276867
MPN: Archer A9 Link
Manufacturer: https://www.tp-link.com
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
Untitled 1
HARDWARE FEATURES
Interface 4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
1 USB 2.0 Port
Button WPS/Reset Button
Wireless On/Off Button
Power On/off Button
External Power Supply 12V/1.5A
Dimensions ( W x D x H ) 9.6 x 6.4 x 1.3 in. (243 X 160.6 X 32.5 mm)
Antenna 3 External Antennas + 1 Internal Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 1300 Mbps at 5 GHz, 600 Mbps at 2.4 GHz
Reception Sensitivity 5GHz:
11a 6Mbps: -93dBm, 11a 54Mbps: -76dBm
11ac HT20 mcs8 : -68dBm, 11ac HT40 mcs9: -64dBm
11ac HT80 mcs9: -61dBm
2.4GHz:
11g 54Mbps: -77dBm
11n HT20 mcs7: -74dBm, 11n HT40 mcs7: -72dBm
Transmit Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security Enable/Disable SSID Broadcast, 64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, WPS
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
Security Parental Control
Guest Network
Firewall
Access Control
WAN Type Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond
Management Access Control, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link DDNS，DynDns, NO-IP
Access Control Blacklist, Whitelist
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
Advanced Features MU-MIMO
Beamforming
Smart Connect
Airtime Fairness
USB Sharing Supports Samba (Storage), FTP Server, Media Server
Guest Network 2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification FCC, RoHS, RCM
Package Contents Wireless Router Archer A9
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
