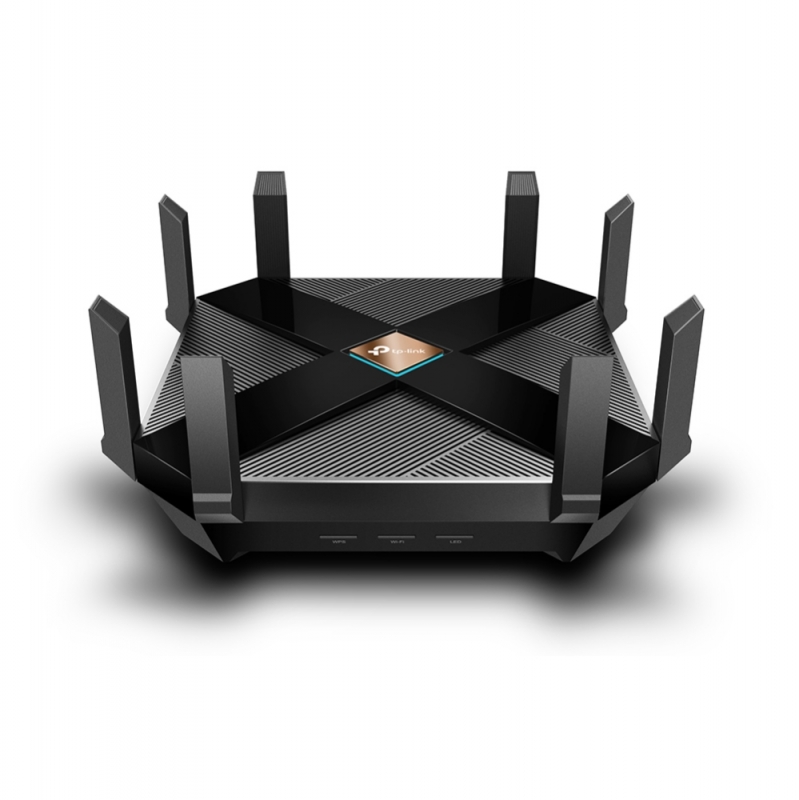

TP-Link Archer AX6000 Next-Gen Wi-Fi 6 (802.11ax) Router, 1x 2.5Gbps WAN, 8x Gigabit LAN, 2x USB 3 (WIFI6)

Special Price $509.00 Regular Price $585.00
SKU: 294879
MPN: Archer AX6000 Link
Manufacturer: https://www.tp-link.com
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6000
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity Very High
Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports

Link Aggregation (802.3ad) available with 2× LAN ports
USB Support 1× USB-C 3.0 Port
1× USB-A 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 5 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeCare™
Learn More>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
Monthly Report
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device

HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 10.3 × 10.3 × 2.4 in.
(261.2 × 261.2 × 60.2 mm)
Package Contents Wi-Fi Router Archer AX6000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz_1:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
5 GHz_2:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
2.4 GHz：
11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
