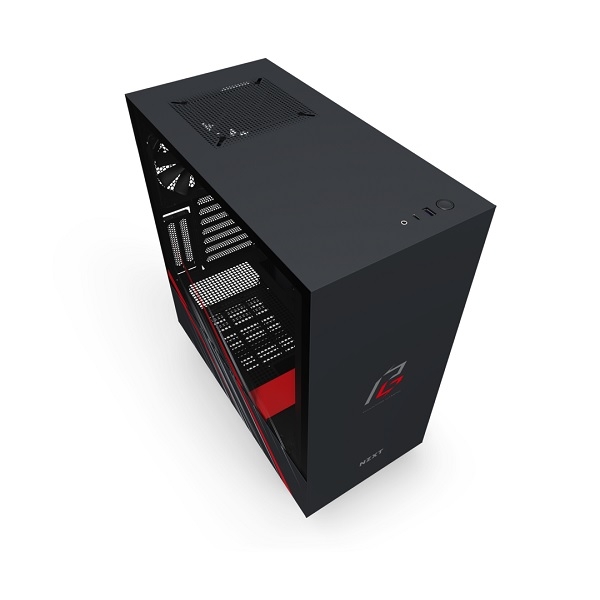

NZXT H510I Phantom Gaming Special Edition Mid Tower Chassis (Nzt-Ca-H510I-Ar)
$200.00
| SKU: | 292629 |
|---|---|
| MPN: | NZT-CA-H510i-AR Link |
| Manufacturer: | https://www.nzxt.com/ |
| Brand: | Nzxt |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Manufacturer: NZXT. The NZXT H510i series of chassis offers a cable management system, removable fan/radiator mounting brackets and easy-to-use drive trays, alongside a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, plus a tempered glass side panel that installs with a single thumbscrew and a Smart Device V2.
Would you like to know more? Check out the full product information page.cial Edition Mid Tower Chassis (Smart Device) Nzt-Ca-H510I-Ar
Would you like to know more? Check out the full product information page.cial Edition Mid Tower Chassis (Smart Device) Nzt-Ca-H510I-Ar
Specifications
▼
| Dimensions |
W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SGCC Steel, Tempered Glass |
| Weight | 6.8 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| Front I/O Ports |
1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header |
| Filters | All Air Intakes |
| Smart Device V2 |
3x Fan channels with Max 10W per channel output* 2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans Built-in noise detection module *Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. |
| LED Strip(s) | 2 integrated addressable LED strip |
| Vertical GPU Mount | 2 Slots |
| Included Accessories |
Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) |
| Drive Bays |
2.5”: 2+1 3.5”: 2+1 |
| Expansion Slots | 7 |
| Radiator Support |
Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
| Clearance |
Cable Management: 19-23mm GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Fan Support |
Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
| Fan Specs |
Aer F120
(Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Warranty | 2 Years |
| Model Number | CA-H510i-B1 |
| EAN | 5060301695010 |
| UPC | 815671014719 |
