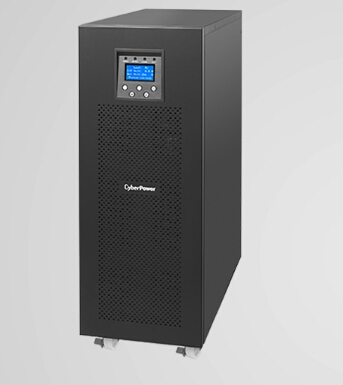

CyberPower Systems OLS6000E ONLINE S-SERIES 6000VA UPS TOWER WITH LCD OLS6000E

$3,316.00

SKU:	231060
MPN:	OLS6000E Link
Manufacturer:	http://us.xyzprinting.com/
Brand:	Cyberpower Systems
Warranty:	1 Year Manufacturer's return to base
Availability:	Preorder 2-3 weeks
Fright Estimate

Description

▼

CyberPower OLS6000E is a high-performance UPS featuring online double-conversion topology, which provides seamless pure sine wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. By manually setting the UPS to ECO Mode, the UPS automatically detects the input power quality and discerns whether it should operate in Line Mode or ECO Mode. Under poor power conditions, the UPS will run in Line Mode, which guarantees the highest level of protection and the best possible power quality. When the input power quality is acceptable, the UPS switches to ECO Mode, which increases the total output power efficiency by up to 96%. The product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.

FEATURES

Online (Double Conversion) UPS Topology
Energy Saving Technology
UPS Parallel Expansion
Generator Compatible
Overload Protection
Maintenance Bypass Switch
Zero Transfer Time
Smart Battery Management (SBM)
External Battery Module (EBM)
Surge and Spike Protection
EMI and RFI Filtration
LCD Status Display
Emergency Power Off (EPO) Port
PowerPanel® Management Software
SNMP/ HTTP Remote Management Capability
Tower Form Factor

Specifications

▼

General

UPS Topology	Double-Conversion
Energy Saving	ECO Mode Efficiency > 96%
Active PFC Compatible	Yes

Input

Voltage	220-240Vac
Input Voltage Range	176Vac - 276Vac
Adjustable Voltage Range	110Vac - 276Vac
Input Frequency Range	50/60Hz ± 10% (Auto-sensing)
Rated Input current	27.3A
Input Power Factor	0.99
Cold Start	Yes
Backfeed Protection	Yes
Plug Type	Terminal Block
Input Current (Amp)	27.3A

Output

VA	6000
Watts	5400
On Battery Waveform	Sine Wave
On Battery Voltage	208, 220, 230, 240Vac (Configurable)
On Battery Frequency	50/60Hz ± 0.05Hz
Overload Protection	Line Mode: 10 minutes minimum,then transfer to bypass @105%<Load≤125%; 1 minute minimum,then transfer to bypass @125<Load≤150% ; 10 second minimum then transfer to bypass @Load>150%; 1 second minimum then transfer to bypass@Load>170%;
Outlets - Total	1
Outlet Type	Terminal Block
Rated Power Factor	0.9
Crest Factor	3:1
Harmonic Distortion	THD < 2% at Linear Load, < 5% at Non-linear Load
ECO Mode Voltage Regulation	±10%, ±15% (Configurable)
Bypass	Internal Bypass (Automatic and Manual)
Transfer Time	0ms

Battery

Runtime at Half Load (min)	15
Runtime at Full Load (min)	5
Battery Type	Sealed Lead-Acid
Battery Number	SH1228Ws
Battery Size	12V/7AH
Battery Quantity	20
Typical Recharge Time	7 Hours
Smart Battery Management (SBM) Mode	Yes

Surge Protection & Filtering

Surge Suppression	445 Joules
EMI/RFI Filtration	Yes

Management & Communications

LCD Control Panel	21 different settings options via the UPS Setting menu
Multifunction LCD Diagnostic Display	15 different status options via the UPS Information up and down keys
HID Compliant USB Port	Yes
Serial Port	Yes
Emergency Power Off (EPO) Port	Yes
Management Cable	USB Cable, Serial Cable
LED Indicators	Yes
Audible Alarms	Yes
Software	PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring	Yes, with optional RMCARD302 / RMCARD303

Physical

Form Factor	Tower
Enclosure Construction	Metal

Physical - UPS Module

Dimensions (WxHxD) (mm.)	260 x 708 x 550
Weight (kg.)	70

UPS Module (Shipping Dimensions)

Dimensions (WxHxD) (mm.)	428 x 970x720
Weight (kg.)	82

Environmental

Operating Temperature	32 °F to 104 °F / 0 °C to 40 °C
Operating Humidity	0% - 90% non-condensing
Operating Elevation	0-3281 feet (0-1000 meters)
Storage Temperature	5 °F to 113°F / -15°C to 45 °C
Storage Relative Humidity	0% - 95% non-condensing
Storage Elevation	0-50000 feet (0-15000 meters)
Online Thermal Dissipation	1603 BTU/hr
Audible noise at 1.5M from surface of unit	60dBA
