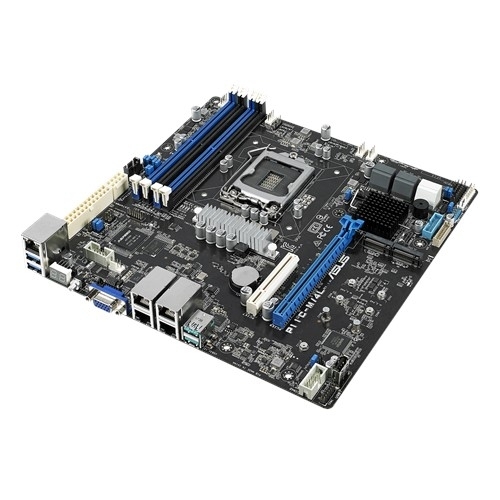

main product photo

Asus P11C-M/ 4L Server Motherboard Lga 1151 Ddr4 Udimm (0/ 4) Uatx 3Yr Wty P11C-M-4L

$373.00
SKU: 285081
MPN: P11C-M-4L Link
Manufacturer: https://www.asus.com
Brand: Asus
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 64GB memory support (4 DIMMs)
  • Rack-optimized design maximizes cooling for excellent thermal efficiency
  • Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots
  • Quad Intel® I210AT Gigabit Ethernet with teaming support
  • Dual M.2 for up to 32Gbps performance and data redundancy
  • TPM 2.0 Ready secures store keys, digital certificates, passwords and data
  • Complete server management with ASUS Control Center
  • Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics



  • Processor / System Bus
    1 x Socket LGA1151
    Intel® Xeon® processor E-2100 family
    Intel® Core™ i3 processors
    Intel® Pentium™ processors
    Intel® Celeron™ processors
  • Core Logic
    Intel® C242 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 64GB UDIMM
    Memory Type :
    DDR4 2666/2400 UDIMM non ECC and with ECC
    Memory Size :
    16GB, 8GB, 4GB
    * Refer to support page for more information
  • Expansion Slots
    Total Slot : 2
    Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied
    Slot Location 7 : PCI-E x8 (Gen3 X8 Link)
    Follow SSI Location#
  • Form Factor
    U ATX (9.6"x9.6", 244mm x 244mm)
  • ASUS Features
    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASUS Control Center
  • Storage
    SATA Controller :
    Intel® C242 Chipset
    6 x SATA3 6Gb/s ports
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
  • Networking
    4 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2500 with 32MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x COM port
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    1 x USB connector*2
    5 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    4 x Front LAN LED
    1 x Serial Port Header
    1 x VGA Header
    2 x M.2 Connector
    1 x Onboard header for optional management card
  • Back I/O Ports
    1 x External Serial Port
    2 x USB 3.1 Gen 2
    2 x USB 3.1 Gen 1
    1 x VGA Port
    4 x GbE LAN + 1 x Mgmt LAN
  • Management Solution
    ASUS Control Center
    Optional ASMB9-iKVM for KVM-over-Internet
  • Weight
    Gift Box (1-in-1)
    Net Weight : 0.747 KG
    Gross Weight : 1.3 KG

    Bulk Pack (10-in-1)
    Net Weight : 7 KG
    Gross Weight : 8 KG
  • Environment
    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Accessories
    Gift Box (1-in-1)
    2 x Support CD
    1 x I/O shield
    6 x SATA 6G cables
    1 x Plate for LGA1151

    Bulk Pack (10-in-1)
    2 x Support CD
    1 x I/O shield
    1 x Plate for LGA1151
  • Monitoring
    CPU Temperature
    Fan RPM
  • Note
    *1 2 x M.2 (NGFF 22110/2280/2260/2242, support PCIE or SATA signal, gray SATA port will disable when M.2 is SATA signal)
    *2 1 x USB 3.0 connector (Type A USB socket)
