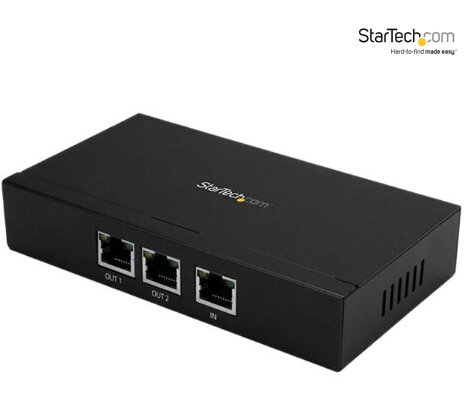

Startech 2-port Gigabit Poe+ Extender - 802.3at And 802.3af - 100 M (330 Ft) Poeext2gat
$234.00
| SKU: | 237555 |
|---|---|
| MPN: | POEEXT2GAT Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Extend two Power over Ethernet devices by 100 meters, or daisy chain up to four extenders for longer distance
| ![]() |
Unrestricted PoE+ range and convenience
Need more distance? This convenient two-port PoE+ repeater maximizes range and flexibility by extending your PoE connections by an extra 100 m (330 ft.), while providing 23-watt power output to two compatible devices. (The power output is shared between each PoE output port).Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered devices (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and more flexibility
Still need more distance? If an extra 100 m isn’t enough, this full-featured PoE extender offers daisy-chain capability.You can easily connect four extenders together, letting you install two PoE+ PDs up to 500 m (1640 ft.) away. It’s perfect for business, education, and retail environments. (Output wattage is dependent on the number of daisy-chained extenders used, and the number of connected PoE devices).
Convenient installation options and durable construction
Get up and running quickly. This 2-port Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter. With its rugged metal housing and built-in ESD and surge protection, the PoE+ extender gives you reliable performance with little worry of downtime or failure.Applications
- Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available
- Enable remote installation of two PoE+ devices over longer distance than conventional PoE range capabilities
- Perfect for SOHO, SMB, system integrators, and IT administrators
Specifications
▼
| Performance | |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Half-duplex back-pressure IEEE 802.3x pause frame for full-duplex |
| Full Duplex Support | Yes |
| Jumbo Frame Support | No |
| Maximum Cable Length | 100 m [328 ft] |
| Maximum Data Transfer Rate | 2 Gbps (Full-Duplex) |
| MTBF | 50,000 Hours |
| Power Output | Power Output: up to 23W |
| Surge Protection | EN61000-4-2 (ESD) - 4kV EN61000-4-5 (Surge) - 4kV |
| Switching Architecture | Store-and-Forward |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 27 mm [1.1 in] |
| Product Length | 140 mm [5.5 in] |
| Product Weight | 239 g [8.4 oz] |
| Product Width | 77 mm [3 in] |
| Power | |
| Output Voltage | 52 ~ 56 DC |
| Power Consumption (In Watts) | 3 W Max |
| Power Source | PoE-Powered |
| Special Notes / Requirements | |
| Note | Total extension distances can often be shorter due to power delivery voltage-drop on the connected cables. Maximum distances can vary based on the quality of the UTP cables and the environment. |
| Patents and Licenses | The following patents are licensed for this product. This list might not be all inclusive. ? United States Patent No. 5,406,260 (expired) ? United States Patent No. 6,650,622 ? United States Patent No. 7,457,250 ? United States Patent No. 8,155,012 ? United States Patent No. 8,902,760 ? United States Patent No. 8,942,107 ? United States Patent No. 9,019,838 ? United States Patent No. 9,049,019 ? United States Patent Application No. 14/695,456 ? United States Patent Application No. 14/726,940 |
| System and Cable Requirements | If your connected device does not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEEXT2GAT will not pass-through power to the connected device / Ethernet cable. |
| What's in the Box | |
| Included in Package | Gigabit PoE extender |
| quick-start guide | |
| rubber feet | |
| Performance | |
| Auto-Negotiation | Yes |
| Auto MDIX | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 367 g [13 oz] |
| Indicators | |
| LED Indicators | Port Link / Activity |
| PoE Power | |
| Hardware | |
| Ports | 2 |
| Industry Standards | IEEE 802.3af PoE, IEEE 802.3at PoE+ |
| IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T | |
| Environmental | |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Humidity | 5~90% RH (Non-Condensing) |
| Connector(s) | |
| Connector Type(s) | RJ-45 Female |
