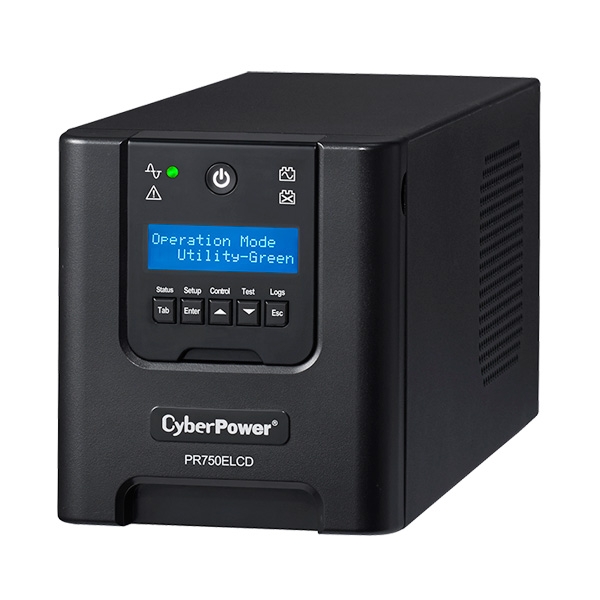

CyberPower Systems PROFESSIONAL TOWER SERIES 750VA (675W) UPS WITH LCD PR750ELCD
| SKU: | 223602 |
|---|---|
| MPN: | PR750ELCD Link |
| Manufacturer: | http://www.cyberpower.com/au |
| Brand: | Cyberpower |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sine Wave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits：
- GreenPower UPS™ Technology
- Pure Sine Wave Output
- Line-Interactive UPS Topology
- Rack/Tower Convertible Configurations
- Automatic Voltage Regulator (AVR)
- EMI, RFI, Surge and Lightning Spike Protection
- Critical Load Outlet
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- Rotatable LCD Indicator
- USB & Serial Connectivity Ports
- Hot-Swappable Battery Packs
- User-Replaceable Batteries
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition
- Equipment Protection Policy up to 100,000 Euros
Specifications
| Model | PR750ELCD |
| Capacity (VA/Watts) | 750VA / 675W |
| Energy- Saving Technology | Yes |
| Input | |
| Frequency Range | 47 ~ 63 Hz (auto-sensing) |
| Input Plug Type | IEC 320 C14 |
| Output | |
| UPS Outlets | (6) IEC |
| On Battery Output Voltage | Pure Sine Wave at 230Vac +/- 5% |
| On Battery Output Frequency | 50Hz / 60 Hz +/- 1% |
| Transfer Time (Typical) | 4ms |
| Overload Protection | On Utility : Internal Current Limiting & Circuit Breaker On Battery : Internal Current Limiting |
| AVR | Double Boost, Single Buck |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| Physical | |
| Maximum Dimensions(H x W x D)(mm) | 162 x 349 x 138 |
| Weight(kg) | 12.3 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | 12V 7AH x 2 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Runtimes | |
| Half-Load/ Full-Load(mins) | 12/4 |
| Status Indication | |
| Indicators | Power On, Online, On Battery, Fault, Replace Battery |
| Audible Alarms | On Battery, Low Battery, Overload |
| Multi-Function LCD Display | Yes |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| COM Interface | Yes |
| USB | Yes |
| SNMP/HTTP Capable | Optional |
