Model

Brand

Antec

Model

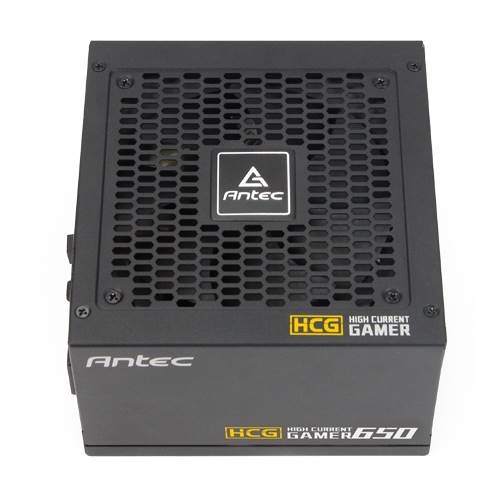

HCG650 Gold

Series

High Current Gamer Gold Series

Details

Type

ATX 12V 2.4

Maximum Power

650W

Fans

120mm FDB Silence fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

4 x 6+2-Pin

SATA Power Connector

8

Modular

Full Modular

Power Good Signal

100-500ms

Efficiency

92% Typically

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50Hz - 60Hz

Input Current

9A - 4.5A

Output

+3.3V@20A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@3.0A

Approvals

cTUVus / TUV / CB / RCM / CE / EAC / CCC / BSMI / FCC / KR

Dimensions

150.11 mm x 139.95 mm x 86.11 mm

Weight

2.04 kg

Features

Features

Guaranteed 650W of Continuous Power from Antec

100% Modular-Improves airflow and reduces clutter

80 PLUS GOLD certified-Up to 92% efficient, to reduce your electricity bill

PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

Antec Quality 10-year warranty and lifetime global 24/7 support

120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence

99%+12V - Output for maximum CPU & GPU support

CircuitShield-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance

28(18+10) pin MBU socket - For possible future MBU connectors

ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation

Compact size 140mm depth power supply is the best choice for compact ATX chassis

Feature

Features

1 x MB 24(20+4) Pin
1 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
1 x FDD

The latest generation of High Current Gamer Gold power supplies offer unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 120 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. If loads of power, high-level engineering and extreme efficiency are what you’re after, the High Current Gamer Gold series is the winner.

• 650W Continuous Power - Guaranteed 650W of Continuous Power
• Fully-modular cable management – Use only the cables you need
• 80 PLUS® GOLD certified - Up to 92% efficient, to reduce your electricity bill
• PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
• AQ10 - Antec Quality 10-year warranty
• 120 mm FDB Fan - Whisper-quiet high-quality fan with long lifetime
• Zero RPM fan mode, which uses thermal sensors to activate the fan only when you need it.
• 4x PCI-E connectors for multiple GPU support
• 100% Japanese Capacitors - High-performance capacitors ensure tightest DC stability and regulation
• 99% +12V - Output for maximum CPU & GPU support
• CircuitShield™ - Full suite of industrial grade protections:
- Over Current Protection (OCP),
- Over Voltage Protection (OVP),
- Short Circuit Protection (SCP),
- Over Power Protection (OPP),
- No Load Operation (NLO),
- Over Temperature Protection (OTP)
- Surge & Inrush Protection (SIP)
• 28(18+10) pin motherboard socket ensure compatibility with the latest motherboards
• ATX12V 2.4—Designed to the latest power supply standards and compatible with the latest generation of CPUs
