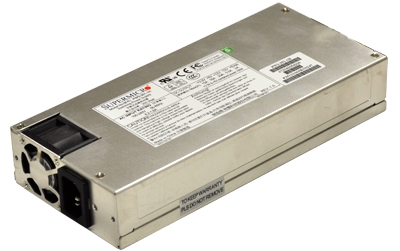

Supermicro 1u 350w 80+ Gold Psu - Suits 5018d-mtf Pws-351-1h
$194.00
| SKU: | 269688 |
|---|---|
| MPN: | PWS-351-1H Link |
| Manufacturer: | https://www.supermicro.com/ |
| Brand: | Supermicro |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
The Supermicro PWS-351-1H is an 80 Plus Gold level power supply capable of continuously supplying 350W output power at 92% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.
Cables Included:
Cables Included:
- 1x 24 Pin ATX (Motherboard)
- 1x 8 Pin 12V (CPU)
- 1x (4+4) 8 Pin 12V (CPU)
- 2x 4 Pin Legacy HDD
- 2x 4 Pin Floppy/DVD drive
Specifications
▼
| TOTAL POWER OUTPUT | 350W |
|---|---|
| TYPE | Single |
| TYPE OF POWER SUPPLY | Power Supply |
| FORM FACTOR | 1U |
| DIMENSION (W X H X L) | 100 x 40 x 220mm |
| +5V | 18A |
| +12V | 29A |
| +3.3V | 15A |
| 5V STANDBY | 3A |
| INPUT VOLTAGE RANGE | 100-240Vac |
| INPUT FREQUENCY RANGE | 50-60Hz |
| INPUT CURRENT RANGE | 4.2-1.8A |
| OUTPUT TYPE | 24Pin ATX Cable Output |
| 8PIN / 4PIN (12V) CONNECTOR | Both |
| PFC | Yes |
| PMBUS | No |
| ENERGY EFFICIENCY | 92% Peak |
| 80 PLUS CERTIFICATION | 80 Plus Gold |
| WARRANTY | 1 year warranty |
| PRODUCT ENVIRONMENTAL COMPLIANCE | RoHS and REACH compliant, details available upon request |
