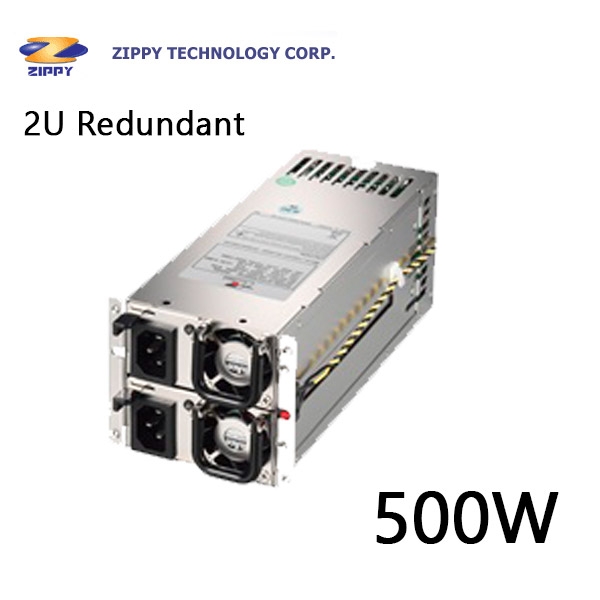

Zippy 2u Redundant Psu 500w M1p2-5500v4v Psuzipm1p25500v4v
$585.00
| SKU: | 249614 |
|---|---|
| MPN: | PSUZIPM1P25500V4V |
| Manufacturer: | http://www.zippy.com/index.aspx |
| Brand: | Zippy |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Featurs
- TEMPERATURE RANGE：OPERATING 0℃～40℃, STOREAGE -20℃~80℃
- HOLD UP TIME：16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE
- EFFICIENCY(PER SET)：POWER SUPPLY EFFICIENCY TYPICAL >80% AT 230V, FULL LOAD
- OUTPUT PROTECTION: OPP / OVP / SCP / OCP
- REMOTE ON / OFF CONTROL
- BALANCE LOAD SHARING DESIGN
- HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
- ISOLATION: BUILT-IN THE POWER MODULE
- FAULTY ALARM METHODS: BUZZER, TTL SIGNAL
- EMI: IEC61000-3-2, FCC, CISPR 22(EN 55022)
- EMS: EN 61000-4-2 ESD, EN61000-4-4 EFT, EN61000-4-5 SURGE
- SAFETY APPROVAL: UL, CUL, TUV, CCC
Specifications
▼
specification
- VOLTAGE：90 ~ 264VAC
- FREQUENCY: 47~63HZ
- STEADY-STATE CURRENT: 8/4A MAX AT ANY LOW/HIGH VOLTAGE
- INRUSH CURRENT: 40/60A @ 115/230VAC
Dimension
217x85x84(mm)
8.54x3.35x3.31(inch)
Vendor Info
▼
Featurs
- TEMPERATURE RANGEï¼OPERATING 0âï½40â, STOREAGE -20â~80â
- HOLD UP TIMEï¼16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE
- EFFICIENCY(PER SET)ï¼POWER SUPPLY EFFICIENCY TYPICAL >80% AT 230V, FULL LOAD
- OUTPUT PROTECTION: OPP / OVP / SCP / OCP
- REMOTE ON / OFF CONTROL
- BALANCE LOAD SHARING DESIGN
- HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
- ISOLATION: BUILT-IN THE POWER MODULE
- FAULTY ALARM METHODS: BUZZER, TTL SIGNAL
- EMI: IEC61000-3-2, FCC, CISPR 22(EN 55022)
- EMS: EN 61000-4-2 ESD, EN61000-4-4 EFT, EN61000-4-5 SURGE
- SAFETY APPROVAL: UL, CUL, TUV, CCC
specification
- VOLTAGEï¼90 ~ 264VAC
- FREQUENCY: 47~63HZ
- STEADY-STATE CURRENT: 8/4A MAX AT ANY LOW/HIGH VOLTAGE
- INRUSH CURRENT: 40/60A @ 115/230VAC
Dimension
217x85x84(mm)
8.54x3.35x3.31(inch)
