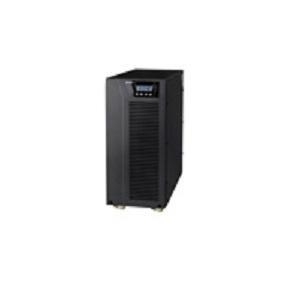

Eaton Powerware 9130 6000va/ 5400w On Line Tower Ups Pw9130g6000t-xlau
$6,119.00
| SKU: | 235721 |
|---|---|
| MPN: | PW9130G6000T-XLAU Link |
| Manufacturer: | https://powerquality.eaton.com/ |
| Brand: | Eaton |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
PW9130G6000T-XLAU
Eaton 9130 6000VA Tower XL
| General | |
| Topology | Online (Double Conversion) |
| Configuration | Tower |
| Part Number | PW9130G6000T-XLAU |
| Color | Black |
| Rating (VA/Watts) | 6000/5400 |
| Diagnostics | Full system self-test |
| UPS Bypass | Automatic bypass |
| Dimensions (H x W x D, mm) | 574 x 244 x 542 |
| Weight (kg) | 75.5 |
| Efficiency | 98% in high-efficiency mode; 95% in online mode |
| Electrical Input | |
| Connection | Hardwired - see manual for terminal block layout  |
| Input Cord | Hardwired |
| Input Voltage Range | 160-276 Vac (with load PF of 0.7) |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Frequency Range | 45–65 Hz |
| Nominal Current | 28.6 A |
| Breaker Ratings | NA |
| Electrical Output | |
| Output Receptacles | Hardwired - see manual for terminal block layout |
| On Utility Voltage Regulation | ±3% of nominal |
| On Battery Voltage Regulation | ±3% of nominal |
| Frequency Regulation | ±3% Hz online |
| Load Crest Factor | 3 to 1 |
| Battery | |
| Runtime (Minutes) Load (Watts) Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Show: Mouseover graph for detailed runtime values | |
| Battery Type | 240 Vdc; (20) 12V, 9 Ah |
| Start On Battery | Allows start of UPS without utility input |
| Communications | |
| User Interface | Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish |
| LEDs | Four status-indicating LEDs |
| Communication Ports | RS-232 and USB HID port as standard |
| Communication Slot | Optional communication slots (BD/MS Slot) |
| Communications Card Slots | SNMP/Web card for monitoring in SNMP-based networks, monitoring through Web browser interface. Relay card for integration to industrial environment and BMS, remote shutdown for IBM AS/400 systems |
| Power Management Software | Bundled software suite CD |
| Environmental & Standards | |
| Audible Noise | <50 dB |
| Operating Temperature | 0˚C to +40˚C |
| Safety markings | CE |
| EMC Markings | CE (per IEC/EN62040-2: Emissions, Category C2; Immunity, Category C2), C-Tick |
| Storage Temperature | -20˚C to +40˚C with batteries and -25˚C to +55˚C without batteries |
| Relative Humidity | 10–90% non-condensing |
Specifications
▼
| Battery Information | |
|---|---|
| Backup/Run Time (Full Load): | 6 Minute |
| Backup/Run Time (Half Load): | 19 Minute |
| General Information | |
|---|---|
| Brand Name: | Eaton |
| Manufacturer Part Number: | PW9130G6000T-XLAU |
| Manufacturer Website Address: | http://www.eatoncorp.com.au |
| Manufacturer: | Eaton Corporation |
| Product Model: | PW9130G6000T-XLAU |
| Product Name: | PW9130 6000VA Tower UPS |
| Product Series: | PW9130 |
| Product Type: | Dual Conversion Online UPS |
| Interfaces/Ports | |
|---|---|
| Serial Port: | Yes |
| USB: | Yes |
| Management | |
|---|---|
| Network Management: | SNMP Manageable |
| Miscellaneous | |
|---|---|
| Certifications & Standards: |
|
| Package Contents: |
|
| Physical Characteristics | |
|---|---|
| Depth: | 542 mm |
| Form Factor: | Tower |
| Height: | 574 mm |
| Weight (Approximate): | 75.50 kg |
| Width: | 244 mm |
| Power Description | |
|---|---|
| Input Voltage: | 220 V AC |
| Load Capacity (VA): | 6000 VA |
| Load Capacity (Watt): | 5400 W |
| Technical Information | |
|---|---|
| Bypass Switch: | Automatic |
| Plug/Connector Type: | Hardwired |
| Receptacles: | Hardwired |
| Warranty | |
|---|---|
| Limited Warranty: | 2 Year |
