*Always verify compatibility and system pinout.

CONTROLLER CABLE PINOUT

3.5mm	RJ45
Tip	Pin 6
Ring	Pin 5
Sleeve	Pin 4

DISPLAY CABLE PINOUT

</table

3.5mm	RJ45
Tip	Pin 5
Ring	Pin 6
Sleeve	Pin 4

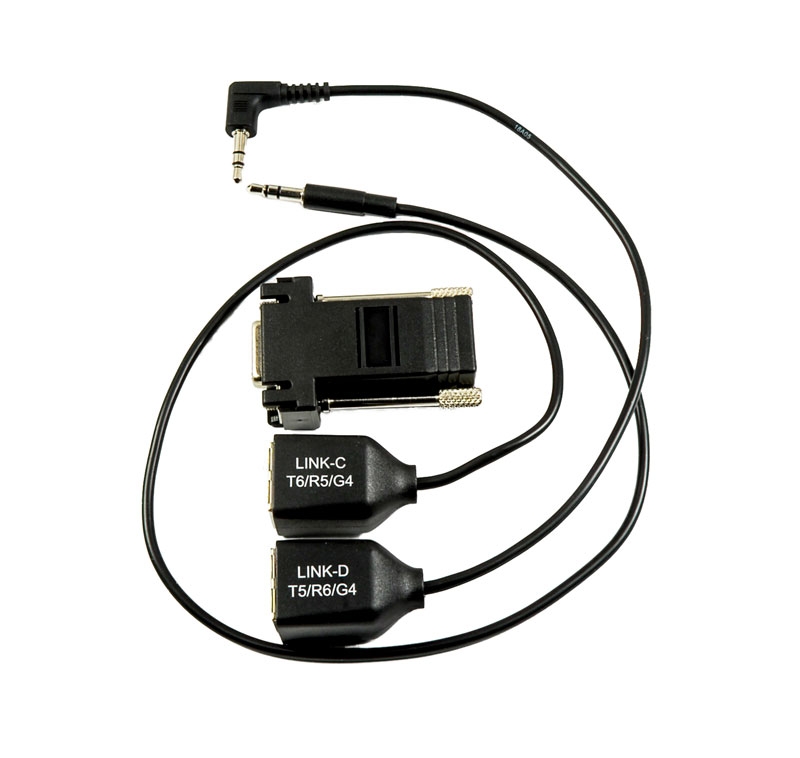

PW-LINKKIT Control & Display Cables, DB9 to RJ45 Adapter The PW-LINKKIT includes PW-LINK-C and PW-LINK-D cables along with a DB9 Female to RJ45 adapter. This kit allows direct control via DB9 or stereo mini-type RS232 outputs included on today’s most popular systems, such as Control4, AMX, and more*. *Always verify compatibility and system pinout. Controller Cable Pinout 3.5mm RJ45 Tip Pin 6 Ring Pin 5 Sleeve Pin 4 Display Cable Pinout 3.5mm RJ45 Tip Pin 5 Ring Pin 6 Sleeve Pin 4 Warranty 1-year limited warranty. Why 4Cabling? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
