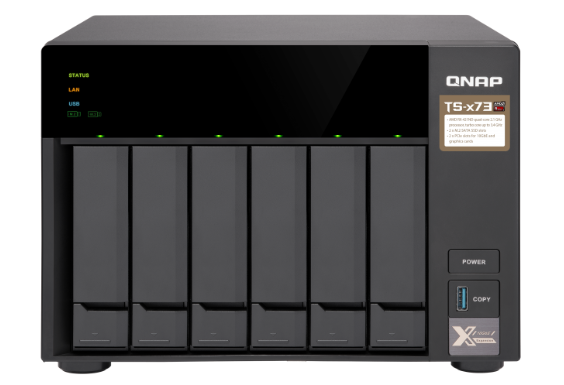

main product photo

Qnap Ts-673-8G 6-Bay Nas Amd Rx-421Nd 2.1~3.4 Ghz

8Gb Ddr4 Ram (Max 64Gb) 8X 2.5"/ 3.5" + 2X M.2 2280/ 2260 Sata 6Gb/ S Slots 2Y Wty Ts-673-8G
$1,736.00
SKU: 278599
MPN: TS-673-8G Link
Manufacturer: https://www.qnap.com
Brand: Qnap
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
Untitled 1

TS-673-8G


The TS-673 is powered by a high-performance and energy-efficient AMD R-Series CPU and provides two PCIe slots for greater functionality. You can install a QNAP QM2 expansion card to add M.2 SSD caching/10GbE connectivity; a compatible wireless card to use the TS-673 as a wireless access point; and an entry-level graphics card (for example: NVIDIA® GeForce® GT1030) to boost system performance for 4K video performance. The TS-673 allows you to flexibly deploy a wide range of applications with a more affordable budget.
CPU AMD R-Series RX-421ND quad-core 2.1 GHz processor (Turbo Core to 3.4 GHz)
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SO-DIMM DDR4 (2 x 4 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x SODIMM DDR4
For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 6 x 2.5-inch or 3.5-inch
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 SSD Slot 2 x M.2 2280/2260 SATA 6Gb/s slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 4
Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen3 x4
Slot 2: PCIe Gen3 x4
USB 3.0 port 4
USB 3.1 Gen 2 (10Gbps) Port Optional via a PCIe adapter
IR Sensor  (QNAP RM-IR004)
HDMI Output Optional via a PCIe adapter
Audio Input 2 x 3.5 mm dynamic microphone jacks
Audio Output 1 x speaker, 1 x 3.5 mm line-out jack
You cannot use the speakers and the line-out jack simultaneously.
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 188.2 × 264.3 × 279.6 mm
Weight (Net) 5.85 kg
Weight (Gross) 7.6 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
