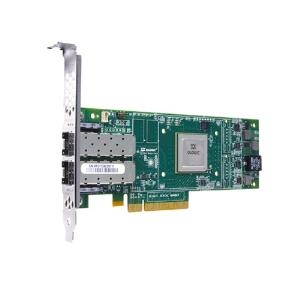

Hp Sn1000q 16gb 2p Fc Hba Qw972a

$958.00
SKU: 217700
MPN: QW972A Link
Manufacturer: http://www8.hp.com
Brand: Hp
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks

Fright Estimate
Looking for a high bandwidth solution to meet the requirements of increasing server virtualization and consolidation? Finding it difficult to realize the full bandwidth potential of your server running I/O intensive applications? HPE StoreFabric SN1000 16Gb Host Bus Adapters enable more rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for greater virtual machine density and bandwidth requirement environments, the SN1000 16Gb HBAs enable more applications and virtual machines to run on a single server and port, resulting in reduced cabling and higher return on IT investment.

A 16Gb FC HBA is backward compatible with 8 and 4Gb storage networks and will protect future investments. With the ability to deliver twice the I/O performance of 8Gb FC HBAs, the SN1000 16Gb HBAs take Storage Networking performance and efficiency to the next level.

Features



The Highest Performing Fibre Channel Host Bus Adapters



The HPE StoreFabric SN1000 16Gb Host Bus Adapters deliver twice the I/O performance of 8 Gb Fibre Channel HBAs.

Moving to 16 Gb technology provides the infrastructure required for the more powerful servers and data intensive applications of the future.

When using storage intensive applications like backup/restore, database transactions, virtualization and rich media, the improved I/O performance enables faster storage and retrieval of data.



Best Fibre Channel HBAs for Virtualization



Ideal for the implementation of virtual servers with the power to drive multiple virtual machines.

Allows a single port to acquire multiple N Port IDs, eliminating the need for additional physical ports.

Datacenter administrators do not need to concern themselves with multiple requests from the virtualized servers potentially creating conflict.

Improves host utilization and enhances application performance.



Next Generation HBAs with Improved IOPS Performance per Watt



Power savings result in lower operating expenditure.

Specifications



Port speed
16 Gb/s Fibre Channel
Channels
  • Dual
Slot type
PCIe to Fibre Channel
Compatible operating systems
  • Microsoft Windows Server 2008
  • VMware ESX and ESXi
  • Red Hat Linux
  • SUSE Linux Enterprise Server (SLES)
  • Microsoft Windows Hyper-V
  • Please visit www.hp.com/storage/spock for the latest available information on Operating System support
Servers supported
  • Select HPE ProLiant G7/Gen8 DL/ML/SL servers
  • Refer to server QuickSpecs for details regarding option support
Compatible array platforms
  • 3PAR
  • P9500
  • P6000
  • XP20000/XP24000
  • P2000 G3
  • EVA 4400/4400s
  • EVA6400/8400
  • Always check SPOCK/Streams for the latest support information

Dimensions and weight



Dimensions (W x D x H)
6.63 x 0.63 in (119 x 168 x 16 mm)
Weight
2.5 lb (1.13 kg)

What's included



Differentiator
  • Dual port 16Gb Fibre Channel PCIe HBA
Warranty - year(s) (parts/labor/onsite)
  • 3/0/0
What's in the box
  • (1) 16Gb HBA with standard bracket, (2) 16 Gb/s SFP+, low-profile bracket, documentation
Marketing TextHP StoreFabric SN1000 16Gb Host Bus Adapters enable more rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media
PI DateFeb 2013
Brand NameHP
Form FactorPlug-In Card
Manufacturer Web sitehttp://www.hp.com
Product LineStoreFabric
Product ModelSN1000Q
Product TypeHost Bus Adapter
Connector Type2 x LC Fibre Channel
InterfaceFibre Channel
No. of ChannelsDual
Host Bus InterfacePCI Express 3.0 x4
Depth (mm)168.0
Height (mm)16.0
Width (mm)119.0
Weight (Grams)1.1
Operating Temperature0 to 55°C
Other Features* Best Fibre Channel HBAs for Virtualization
* Next Generation HBAs with Improved IOPS Performance per Watt
* Port speed: 16 Gbps Fibre Channel
