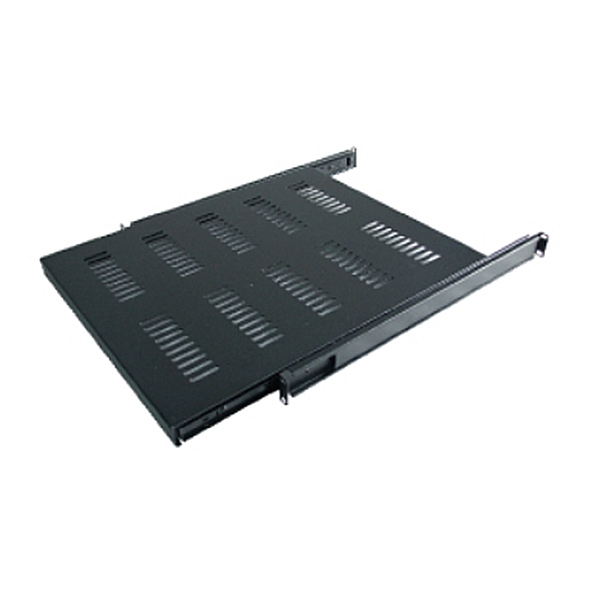

Linkbasic 550Mm Deep Sliding Shelf For 800Mm Deep Cabinet Only Cfd80-A
$94.00
| SKU: | 276078 |
|---|---|
| MPN: | CFD80-A Link |
| Manufacturer: | https://www.linkbasic.eu |
| Brand: | Linkbasic |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
DESCRIPTION
CFD80-A sliding shelf compatible with cabinets of series NCB and NCF of min. 800mm in width.
The maximum load is 50kg.
The shelf is four-point mounted to rack rails.
The colour of the shelf is black RAL9004.
FEATURES
- Cold-rolled steel of thickness: 1.2mm
- Load capacity to 50kg
- Available in black RAL9004
- Assembly instructions: fixed-mounted to rack rails
- Compatible with NCB and NCF cabinets of min. 800mm in depth
- Surface finish: degreasing, etching, phosphating, powder coating
- Protection against rust, oxidation, scratches, corrosion
- Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, GB/T3047.2-92
- Compatible with metric ETSI and 19-inch international standards
Specifications
▼
SPECIFICATION
| Shelf type | Sliding |
|---|---|
| Compatible with | NCB nad NCF cabinets of min. 800mm depth |
| Mounting | Four points to the rack rails |
| Maximum spacing of shelves mounting rails | 900mm |
| Shelve depth | 550mm |
| Shelve width | 469mm |
| Usable width | 428mm |
| Maximum load capacity | 50kg |
| Steel thickness | 1.2mm |
| Color | Black RAL9004 |
| Additional information | - Cold-rolled steel |
| Net weight | -kg |
