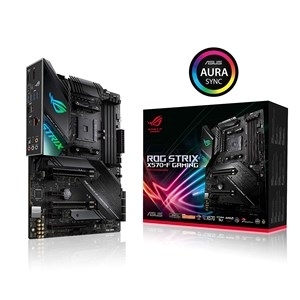

main product photo

Asus Amd X570 Atx Gaming Motherboard 90Mb1150-M0Uay0

Pcie 4.0 Aura Sync Rgb Lighting 2.5 Gbps And Intel Gigabit Lan Wi-Fi 6 Dual M.2 With Heatsinks Sata 6Gb/S
$484.00
SKU: 291118
MPN: 90MB1150-M0UAY0
Manufacturer: https://www.asus.com/au/
Brand: Asus
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
AMD X570 ATX gaming motherboard with PCIe 4.0, 2.5 Gbps and Intel Gigabit LAN, Wi-Fi 6 (802.11ax), 16 power stages, dual M.2 with heatsinks, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting

AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI

Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors

Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header

Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors

Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V

5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action

Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A
Chipset AMD X570
Form Factor ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors Back: 1 x DisplayPort, 1 x HDMI, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x Anti-surge 2.5G LAN (RJ45) port, 1 x USB BIOS Flashback® Button(s), 1 x ASUS Wi-Fi Module, 7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A), 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port; Internal: 1 x PCH_FAN, 1 x AAFP connector, 2 x Aura RGB Strip Header(s), 2 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support, 1 x SPI TPM header, 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x W_PUMP+ connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x Node Connector(s), 1 x System panel connector, 1 x T_Sensor Connector, 1 x M.2 Fan Header, 1 x USB 3.2 Gen 2 (up to 10Gbps) connector, 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Integrated CPU Graphics
LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Memory/Type/Bus/Max.
PCI Slots 2 x PCIe 4.0 x16 (x16 or dual x8)
Processor Support 3rd Gen AMD Ryzen™ Processors; 2nd Gen AMD Ryzen™ Processors; 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors; AMD X570 chipset
Raid
RAM Type/Bus/Max.
Socket AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Storage Interface 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support; 8 x SATA 6Gb/s port(s)
AMD X570 ATX gaming motherboard PCIe 4.0, Aura Sync RGB lighting, 2.5 Gbps and Intel Gigabit LAN, Wi-Fi 6, dual M.2 with heatsinks, SATA 6Gb/s
