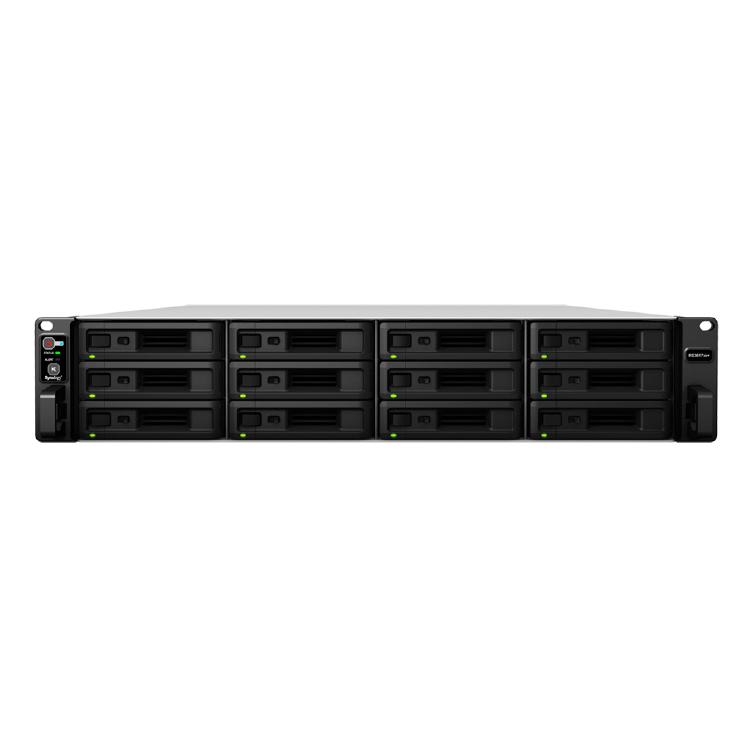

Synology Rackstation Rs3617xs+ 12-bay 3.5" Diskless 4xgbe 2x10gberj45 (2u Rack),intel Xeon D-1531
| SKU: | 227950 |
|---|---|
| MPN: | RS3617xs+ Link |
| Manufacturer: | https://www.synology.cn/en-us/ |
| Brand: | Synology |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
A new standard in performance
Powered by a 6-core processor, RS3617xs+ delivers blazing performance with over 4,937 MB/s sequential throughput and 556,727 IOPS under a RAID 5 configuration1 with 10GbE Link Aggregation. Equipped with 8GB DDR4 ECC RAM (upgradeable to 64GB), RS3617xs+ ensures data accuracy when handling high-value data and mission-critical tasks across large-scale businesses.
| 5500 | ||
| 5000 | ||
| 4500 | ||
| 4000 | ||
| 3500 | ||
| 3000 | ||
| 2500 | ||
| 2000 | ||
| 1500 | ||
| 1000 | ||
| 500 | ||
| Read | Write |
10GbE network capability
RS3617xs+ comes with two 10GBase-T and four Gigabit ports, and additionally allows for the installation of up to two 10GbE Network Interface Cards (NIC), maximizing bandwidth and meeting high performance requirements for data-intensive applications.
Scale on demand
As your data storage needs grow, RS3617xs+ can be connected to one or two dedicated RX1217/RX1217RP2 expansion units, allowing you to expand storage capacity up to 36 drives3 without disrupting service. The high-bandwidth cable ensures speedy data transmission between the main server and expansion unit.
Reliable redundancy mechanisms
RS3617xs+ comes with comprehensive redundancy mechanisms to ensure business continuity. Built-in LAN ports with failover provides reliable redundancy in the event of unexpected network failure. The high reliability system design including fanless CPU heat-sink and passive cooling technologies prevents single point of failure.
Enhanced encryption performance
RS3617xs+ is equipped with an encryption engine which offloads encryption calculation tasks from the main CPU, thus allowing it to perform other important tasks. In addition, Advanced Encryption Standard (AES) on shared folders with hardware acceleration ensures security without compromising access performance, providing over 3,665 MB/s in reading.
SSD cache technology
RS3617xs+ enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, RS3617xs+ offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.
5 year warranty
Synology RS3617xs+ is backed with Synology's 5-year limited warranty. With technical support and hardware replacement service, the 5-year warranty maximizes your enterprises' return on investment. For the entire duration, you will enjoy technical support via email and telephone.
Award winning OS - DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.Learn more
Fit into business environments easily
With the support of Windows AD, LDAP, and Domain Trust, RS3617xs+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on RS3617xs+ allows IT administrators to fine tune access controls and set up privileges to files and folders on RS3617xs+ through the familiar Windows user interface. With compatibility for major protocols, RS3617xs+ can eliminate server configuration overhead and enhance IT administrators’ efficiency. Learn more
Next-generation data protection and integrity
When dealing with large-scale data storage, businesses require a solution that offers reliable backup and prevents file corruption. With support for the next-generation Btrfs file system, RS3617xs+ ensures information is stored with a high level of data integrity, while providing flexible and efficient data protection tools. See the white paper for more technical details regarding Btrfs and data protection.
Learn more about the benefits of using Btrfs
Fast and efficient snapshots
Snapshots preserve the history of a shared folder allowing you to save up to 1024 backup copies for point-in-time recovery. Snapshots can be automatically captured up to every 5 minutes, without noticeably impacting system performance.
Metadata mirroring and survivability
Btrfs file system stores two copies of critical metadata on a volume, improving the availability and ensuring the integrity of your file system.
Corruption detection and correction
Btrfs generates checksums for data and metadata, and then verifies the checksums during each read process to ensure the integrity of the filesystem and files. If the file system discovers a mismatch, metadata will be repaired to keep file system consistent. In the meantime, corrupted files will be reported and logged.
Customizable quotas for shared folders
With Btrfs, you can specify a storage limit for each shared folder, making it possible to precisely control space consumption when multiple teams or departments save files on the same Synology NAS server.
Seamless storage solution for virtualization environments
RS3617xs+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, Hyper-V, and OpenStack Cinder. With VMware vSphere 6 and VAAI integration certified, RS3617xs+ helps offload specific storage operations and optimizes computation power for unparalleled performance and efficiency in VMware environments. As the centralized storage of a virtual environment, RS3617xs+ enables virtual machine migration, allowing movement from server to server whilst eliminating service downtime and disruption to user. Windows Offloaded Data Transfer (ODX) and Synology Advanced LUN support greatly improves the efficiency on massive data transfer and migration. With OpenStack Cinder support, RS3617xs+ can be used as a block-based storage component for servers complying with the Cinder API. Learn more
Unified storage system
RS3617xs+ enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). RS3617xs+ provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed. Learn more
Protection with LUN backup, snapshot, and clone
RS3617xs+ enhances the ease of moving and copying data in a virtualized environment with the features LUN Snapshot, clone, and replication. Synology’s LUN Clone and LUN Snapshot only consume 1/1000 of the original size highly optimizing storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots. Learn more
Synology CMS (Central Management System)
For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration. Learn more
Increase business productivity with cloud solutions
With comprehensive cloud solutions, RS3617xs+ lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key. Learn more
Ensuring business continuity & reliability
Uninterrupted availability is a critical goal for all businesses. RS3617xs+ offers Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. Shared Folder Sync can replicate data in real-time to another Synology NAS at a remote location, giving your business the Recovery Time Objective (RTO) for prompt disaster recovery. With multiple LAN ports, RS3617xs+ also ensures redundancy in the event of unexpected network failure. Learn more
*Please refer to the SHA White Paper for more details.
Secure your data
RS3617xs+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RS3617xs+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.
Specifications
| Model | Synology RackStation RS3617xs+ |
| Classification | Large Scale Business |
| Form Factor | 2U Rack Mount |
| Scalable | Yes |
| HDD Pre-Installed | Diskless |
| Drive Bays | 12 |
| Drive Bay Configuration (#) | 3.5" (12) / 2.5" (12) SATA 6Gb/s |
| Storage Capacity (Installed) | None |
| Hot Swap Bays | Yes |
| Processor | Intel Xeon D-1531 six-core |
| CPU Clock Speed | 2.2 |
| Memory DRAM (Installed / Max) | 8GB / 64GB |
| Memory Type | ECC UDIMM |
| USB Port | Yes |
| eSATA Port | No |
| External Port Configuration | USB 3.0 (2), USB 2.0 (2), Expansion Port (2) |
| LAN | 10GbE RJ-45 (10GBase-T) x 2, 1GbE RJ-45 x 4 |
| Wireless | Optional USB Dongle |
| AV Output | None |
| LCD Display Panel | No |
| Software | Synology DSM |
| Other Features | Optional Rack Kit and expansion units available |
| Package Contents | RS3617xs+ main unit, Quick Installation Guide, accessory pack, AC power cord |
| Packaging | Retail |
| Unit Dimensions (W x H x D mm) | 430.5 x 88.0 x 692.0 |
| Weight (Kg) | 14.500 |
| Warranty | 5 year |
Vendor Info
⚫Reliable, superior-performance for enterprises seeking uninterrupted service with comprehensive business applications.
⚫Intel Xeon D-1531 6-core CPU boosting performance at over 4,937 MB/s throughput and 556,727 IOPS
⚫Dual 10GBase-T ports and optional 10GbE NICs
⚫8GB DDR4-2133 ECC UDIMM, expandable up to 64GB ( 1x 8GB stick / 4 slots max)
⚫Scale up to 36 drives with Synology RX1217/RX1217RP
⚫Complete virtualization solution for VMware, Windows Hyper-V, and Citrix
⚫OpenStack Cinder support
⚫Advanced Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
⚫Redundant power supplies ensure service uptime
⚫Backed with Synology's 5-year limited warranty
⚫Maximum IP camera: 90 (total of 2,700 FPS at 720p, H.264) (Including two free camera licenses. Procurement of additional licenses is required.)
⚫Optional Accessories Camera License Pack, VS360HD, Synology RKS1317, 8GB and 16GB DDR4-2133 ECC UDIMM module, Synology Expansion Unit (RX1217/RX1217RP x 2), 10Gbps Ethernet adapters
⚫PCIe 3.0 x8 slot - Two running at x8 mode, supports two dual-port 10GbE network interface cards
⚫Model backed with Synology Replacement Service (SRS) - Conditions apply. Refer to the Synology Website
