Essentials

• Product CollectionIntel® RAID Controllers
• Code NameProducts formerly Dark Canyon
• StatusLaunched
• Launch DateQ3'13
• Expected Discontinuance2H'20
• Target MarketMainstream
• Board Form FactorLow Profile MD2 Card
• Data Transfer Rate12 Gb/s
• Supported DevicesSAS/SATA
• RAID Level Supported0, 1, 10, 5, 50, 6, 60
• JBOD ModeNo
• # of Ports Internal4
• # of Devices Supported128
• Embedded Memory1GB
• PCIe Host InterfacePCIe x8 Gen3
• IO Processor ModelLSI3108
• Connector OrientationSide
• Additional Extended Warranty DetailsIntel® RAID Extended Warranty
• Included ItemsRaid Controller, Quick Start User Guide, 1 standard & 1 Low Profile bracket.
• Recommended Customer PriceN/A

Supplemental Information

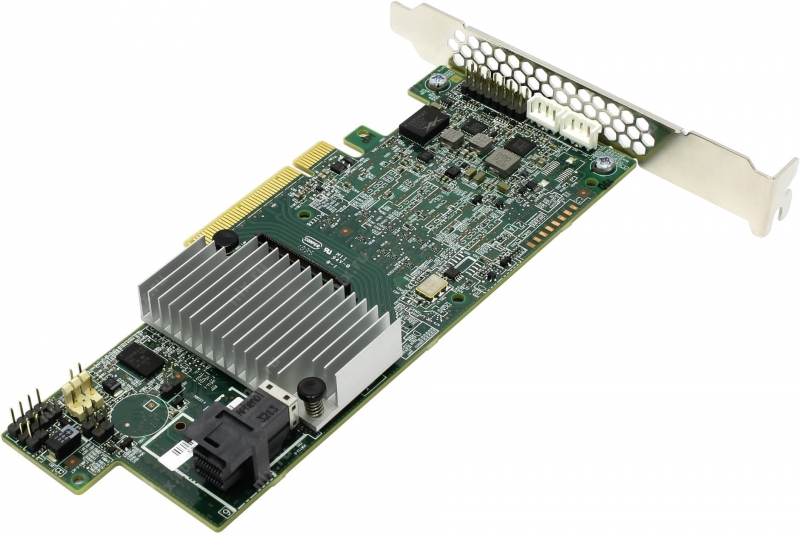

• Description12Gb/s SAS, 6Gb/s SATA, LSI3108 ROC Mainstream Intelligent RAID 0,1,5,10,50,60 add-in card with x8 PCIe 3.0, 4 internal ports, MD2 Low Profile form factor.

Description
12Gb/s SAS, 6Gb/s SATA, LSI3108 ROC Mainstream Intelligent RAID 0,1,5,10,50,60 add-in card with x8 PCIe 3.0, 4 internal ports, MD2 Low Profile form factor.

Target Market
Mainstream

Board Form Factor
Low Profile MD2 Card

Data Transfer Rate
12 Gb/s

Supported Devices
SAS/SATA

RAID Level Supported
0, 1, 10, 5, 50, 6, 60

JBOD Mode
No

# of Ports Internal
4

# of Devices Supported
128

Embedded Memory
1GB

PCIe Host Interface
PCIe x8 Gen3

IO Processor Model
LSI3108

Connector Orientation
Side

Included Items
Raid Controller, Quick Start User Guide, 1 standard & 1 Low Profile bracket.
