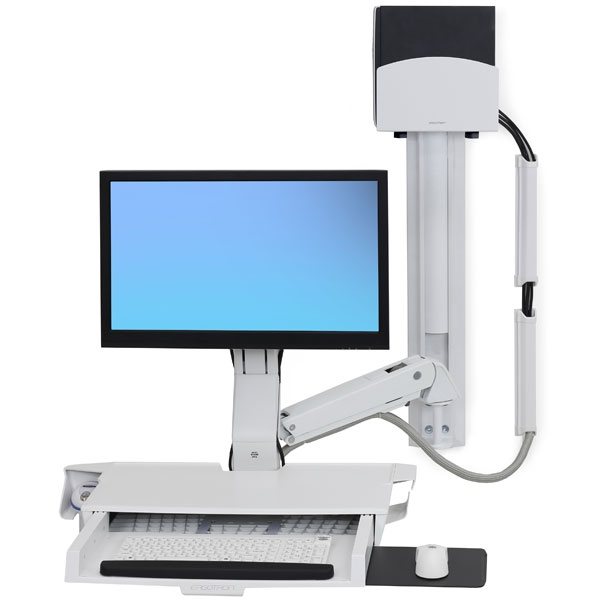

Ergotron Styleview Sit-stand Combo System With Worksurface Bright White Texture 45-272-216

$1,400.00
SKU: 207066
MPN: 45-272-216
Manufacturer: http://www.ergotron.com/Home/tabid/36/language/en-US/Default.aspx
Brand: Ergotron
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks

Fright Estimate
Benefits

Support workflow needs with sturdy worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)

Handle-contact surfaces and Wrist Rest are treated with Agion® Antimicrobial for product protection

Flexible, open-architecture design is scalable for future computer equipment

Comfortable, ergonomic data entry—work sitting or standing with 20" (51 cm) single-motion lift adjustment

Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users

Easy-to-clean features promote superior infection control

Barcode scanner holder provides easy access to hand-held scanner

Extend LCD and keyboard up to 43" (109 cm) from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 8" (20.3 cm)

Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface

Maintains the relative position of screen and keyboard throughout full range of motion

Clean, concealed and neat routing of cables through the expansive cable management system

Tech Specs
Screen
? 24"
Capacity
? 32 lbs*
14.5 kg
Lift
25"†
64 cm
Tilt
30°‡
Pan
360°
Rotation
90° P/L
VESA
MIS-D
Part Number: 45-272-216
Description: StyleView Sit-Stand Combo System with Worksurface and Small CPU Holder (white)
Includes Combo Arm, 34" Wall Track with (2) black track covers, Small Black CPU Holder, CPU spacer, (2) 10" cable channels, CPU and Arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, cable ties
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 50 lbs (22.7 kg)
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
‡ Monitor up/down tilt = +25°/-5°
Patented CF™ lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
Back-tilt keyboard tray adjustable from 0° to -10°
CPU Size Range: 1-3/8" to 3-3/4" (35 to 95 mm) wide; accommodates most small form factor and ultra small form factor CPUs
CPU Holder includes fasteners for locking the holder’s width
Optional Extender (45-261-026) increases range of motion for even greater reach
Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Product Weight: 41 lbs (19 kg)
Shipping Dimensions: 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Shipping Weight: 51 lbs (23 kg)
Warranty: Five (5) years
Marketing TextThis complete system provides easy re-positioning of your entire workstation—move your display, keyboard, mouse and barcode scanner in a single motion.
PI DateJan 2016
Brand NameErgotron
Manufacturer Web Sitehttp://www.ergotron.com
Product LineStyleView
Product TypeSit-Stand Combo System
Display Size Supported24inch
Weight Capacity14.5Kg
Tilt30degree
Pan360degree
Rotation90degree
Weight (Kg)19.0
ColorWhite
MaterialAluminum and Plastic
Package Includes* Combo Arm, 34" Wall Track with (2) black track covers, Small Black CPU Holder, CPU spacer, (2) 10" cable channels, CPU and Arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, cable ties
Other Features* Handle-contact surfaces and Wrist Rest are treated with Agion Antimicrobial for product protection
* Flexible, open-architecture design is scalable for future computer equipment
* Easy-to-clean features promote superior infection control
Warranty Information5 Year
