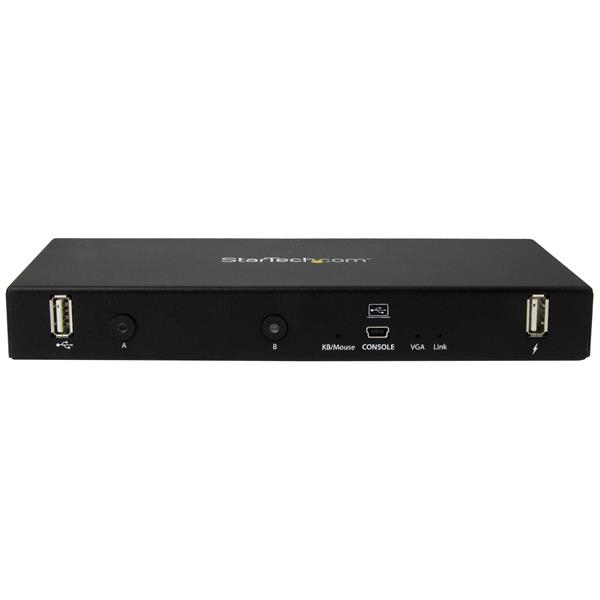

Startech 2-port Kvm Console Adapter - Laptop-to-server - Rackmount Crash Cart Adapter - Instantly Turn Your Laptop Into A 2-portkvm Console By Sv231usblc
| SKU: | 230943 |
|---|---|
| MPN: | SV231USBLC Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
This 2-port USB crash-cart adapter gives you KVM control of your servers, directly from your laptop. It’s a convenient solution for routine diagnostics, maintenance and updates for small-scale server applications, giving you full console access to servers located in small spaces, or congested server racks. It’s also perfect for environments where a fixed-installation console server isn’t feasible, such as in a server closet or wall-mounted server rack.
Maximize your IT budget, minimize your hassle
The USB crash-cart adapter offers a cost-effective and convenient way to access and control your servers. At a fraction of the cost of a rack-mounted LCD console, installing this easy-to-use adapter means not having to wheel around a conventional server-room crash cart.
Instead of the expense of a dedicated rack console, or hassle of a full-scale crash cart, you can multi-purpose your laptop and save your IT budget by using equipment you already have on hand.
Streamline your server maintenance
Using the included software, the adapter can do things that regular KVMs can’t. The software provides a robust and flexible interface that lets you view your servers on your full laptop screen, without scroll bars, and lets you reduce the viewing window so that you can work on your laptop and servers at the same time to maximize your productivity.
The software also supports file transfers between your laptop and the servers, which is perfect for server software updates and patches. The adapter’s software also offers video capture support, so you can record your activity on the servers as video, which you can later use for verification or instructional purposes.
Get up and running in minutes
The USB crash cart is easy to install, using the included mounting brackets and 2-in-1 USB and VGA cables. Installing the included software on your laptop is also easy, using the included pre-loaded USB key.
The SV231USBLC is backed by a 2-year StarTech.com warranty, and free lifetime technical support.
Specifications
| Connector(s) | |
| Console Interface(s) | USB Mini-B (5 pin) Female |
| Host Connectors | USB B (4 pin) Female |
| VGA (15 pin, High Density D-Sub) Male Input | |
| Other Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
| VGA (15 pin, High Density D-Sub) Female Input | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Audio | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | console activity and link LED |
| host/server video (VGA) Link | |
| keyboard/mouse activity and link LED | |
| port 1 activity LED | |
| port 2 activity LED | |
| Packaging Information | |
| Shipping (Package) Weight | 1.5 kg [3.2 lb] |
| Performance | |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| Physical Characteristics | |
| Cable Length | 416 mm [16.4 in] |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 260 mm [10.2 in] |
| Product Height | 25 mm [1 in] |
| Product Length | 195 mm [7.7 in] |
| Product Weight | 365 g [12.9 oz] |
| Product Width | 100 mm [3.9 in] |
| Power | |
| Input Current | 0.75 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.6.x to 4.11 (LTS Versions only) |
| Special Notes / Requirements | |
| Note | If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration |
| What's in the Box | |
| Included in Package | 2-in-1 USB and VGA cables - 6 ft |
| 2-port laptop-to-KVM console adapter | |
| mounting brackets | |
| quick install guide | |
| universal power adapter (NA/EU/UK/AU) | |
| USB A to Mini-B cable | |
| USB software key | |
