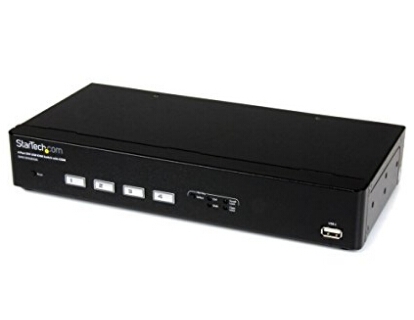

Startech 4 Port Usb Dvi Kvm Switch With Ddm Fast Switching Technology And Cables - Four Port
| SKU: | 237321 |
|---|---|
| MPN: | SV431DVIUDDM Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
The SV431DVIUDDM 4-Port USB DVI KVM Switch lets you control 4 DVI, USB-equipped PCs using a single peripheral set at high-definition DVI resolutions up to 1920x1200.
The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.
For the next level in KVM performance, this DVI KVM switch integrates dual-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.
In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Switch between devices with minimal lag through fast-switching DDM technology
- Instant setup and operation with included KVM cables
- Near universal compatibility with all USB input devices through USB DDM Ports
Specifications
| Connector(s) | |
| Console Interface(s) | DVI-I (29 pin) Female |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | DVI-I (29 pin) Female |
| USB B (4 pin) Female | |
| Other Interface(s) | RJ-45 Female |
| USB Type-A (4 pin) USB 2.0 Female | |
| Environmental | |
| Humidity | 0~80% RH (Non-Condensing) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -30?C to 70?C (-22?F to 158?F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 4 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DVI |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Hot-Key Selection Indicators |
| PC Selection Indicators | |
| Packaging Information | |
| Shipping (Package) Weight | 3.4 kg [7.4 lb] |
| Performance | |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 1920x1200 |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 22 mm [0.9 in] |
| Product Length | 66 mm [2.6 in] |
| Product Weight | 1.2 kg [2.6 lb] |
| Product Width | 138 mm [5.4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.4A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.0A |
| Output Voltage | 5 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 10 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No additional software or drivers required |
| What's in the Box | |
| Included in Package | 6ft DVI-D USB KVM Cables |
| Firmware Upgrade Cable | |
| Instruction Manual | |
| KVM Switch | |
| Universal Power Adapter (NA/UK/EU) | |
