Supermicro Superchassis 731i-300b Mini Tower Suits Micro Atx Mb 2 X Front Usb 2.0 2 X 5.25" Hdd
| SKU: | 269708 |
|---|---|
| MPN: | 731i-000NBP |
| Manufacturer: | https://www.supermicro.com/ |
| Brand: | Supermicro |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description

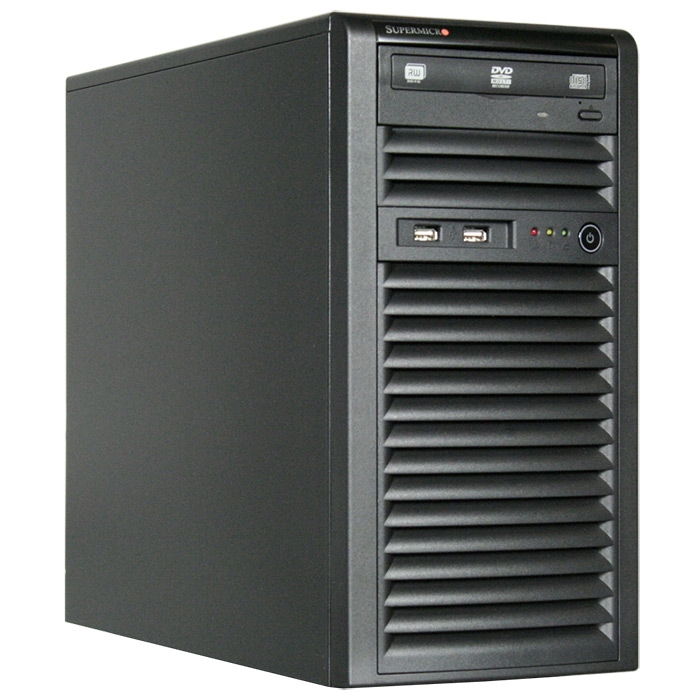

Supermicro SuperChassis 731i-000NBP Mini-Tower Chassis - 300W PSU, Black
Features
- 90° Rotatable HDD Cage
- Whisper-Quiet (<25dB)
- Kensington Lock Support
- Front I/O Supports 2x USB 2.0
- 1x Optional Front Intake 8cm (2800 RPM) PWM Fan
- Mini-Tower Chassis Supports Micro-ATX Motherboard, Size 9.6" x 9.6"
- 300W Bronze Level Certified High-Efficiency Power Supply
- 1x Rear 9cm (2050 RPM) PWM Fan
- 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
Specifications
Specifications
Product SKUs
CSE-731i-300B
SuperChassis 731i-300B
Form Factor
Mini-Tower Chassis - supports for maximum motherboard sizes of 9.6" x 9.6"
Processor Support
Dual Intel and AMD processors
Dimensions
Height
14.25" (362 mm)
Width
7.25" (184 mm)
Depth
16.75" (425 mm)
Net Weight
16 lbs (7.26 kg)
Gross Weight
20 lbs (9.07 kg)
Packaging (W x H x L)
11" (279 mm) x 20" (508 mm) x 21" (533 mm)
Available Color
Black
Expansion Slots
4 full-height & full-length expansion slot(s)
Drive Bays
2 x 5.25" drive bay
4 x 3.5" fixed drive bay
Front Panel
Buttons
Power On/Off button
LEDs
1 Network Activity LEDs
HDD activity LED
Power LED
System Overheat LED
Ports
2x USB 2.0 Port(s)
Motherboard (for CSE- 731i-300B)
X8SIL X8SIL-F
X10SLQ X10SL7-F
X10SLM+-LN4F X10SLM+-F
X10SLH-F X10SLM-F
X10SLL-F X10SLL-S
X10SLL-SF X10SLL+-F
A1SAM-2550F A1SRM-2558F
A1SRM-2758F X10SLQ-L
A1SAM-2750F X11SSH-F
X11SSH-LN4F X11SSA-F
X11SSL-F X11SSL
X11SSM-F X11SSM
X11SSQ X11SSZ-TLN4F
X11SSZ-F X11SSZ-QF
X11SSV-Q X11SAE
X11SAE-F X11SAE-M
X11SAT-F C7Z170-SQ
C7Z170-M C7H170-M
X10SRM-TF X10SRM-F
X11SSQ-L C7C232-CB-ML
X11SSV-LVDS
Servers (for CSE- 731i-300B)
5038D-I 5039D-i
Systems Cooling
Fans
1 x 9cm (2050 RPM) rear exhaust fan(s)
Optional 1 x 8cm (front) cooling fan
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
PS2 300W Multi-output power supply, 24pin output, Bronze level
Power Efficiency
87%
Total Output Power and Input
300W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
150 x 140 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0A
+12V
Max: 18A / Min: 0.4A (100Vac - 240Vac)
Max: 12A / Min: 0.2A (100Vac - 240Vac)
Max: 16A / Min: 0.2A (100Vac - 240Vac)
+5V
Max: 13A / Min: 0.1A
+3.3V
Max: 12A / Min: 0.1A
+5Vsb
Max: 2A / Min: 0A
Certification
Bronze CertifiedBronze Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
