Product SKUs

SYS-5019P-MR

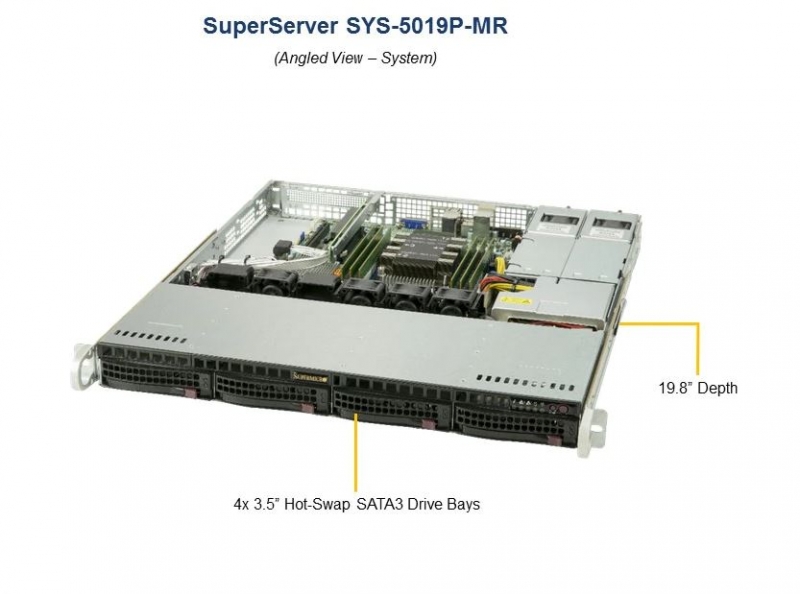

SuperServer 5019P-MR (Black)

Motherboard


Super X11SPM-F

Processor/Cache

CPU
Single Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡
Support CPU TDP 70-165W
Cores
Up to 28 Cores
Note ‡ BIOS version 3.0b or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

System Memory

Memory Capacity
6 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††
Memory Type
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset
Intel® C621 chipset
SATA
SATA3 (6Gbps) via C621 controller
RAID 0, 1, 5, 10 support
Network Controllers
Dual Gigabit Ethernet LAN with Marvell® 88E1512
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC

Input / Output

SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 ports (2 front, 2 rear)
2 USB 2.0 ports (rear)
Video
1 VGA port
Serial Port / Header
2 COM ports (1 rear, 1 header)
SuperDOM
2 SuperDOM (Disk on Module) ports with built-in power

System BIOS

BIOS Type
AMI UEFI

Management

Software
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI Power Management

PC Health Monitoring

CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors


Chassis

Form Factor
1U Rackmount
Model
CSE-813MFTQC-R407CB

Dimensions and Weight

Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
19.8" (503mm)
Package
8.5" (H) x 24" (W) x 29.5" (D)
Weight
Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)
Available Colors
Black

Front Panel

Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED

Expansion Slots

PCI-Express
1 PCI-E 3.0 x16 slot (FH, HL)

Drive Bays

Hot-swap
4 Hot-swap 3.5" SATA3 drive bays
M.2
Interface: PCIe 3.0 x4
Form Factor: 2242, 2280

Peripheral Drives

Optional
1 Slim DVD-ROM drive
1 USB + COM port tray

System Cooling

Fans
4x 40x28mm PWM fans; 2x fans for AOC cooling
Optional 2 fans for AOC cooling

AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
400W
Dimension
(W x H x L)
54.5 x 40 x 220 mm
Input
100 - 240Vac / 6.0 - 3.0A / 50-60Hz
200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
Max: 33A / Min: 0.5A
+5V sb
Max: 3A / Min: 0A
Output Type
Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
Platinum Level Certified
[ Test Report ]

Operating Environment / Compliance

RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
