  • Supermicro Superworkstation 7039a-i 4u Tower Dual Socket Lga3647 16x Dimm Intel C621 2 X Gb Lan

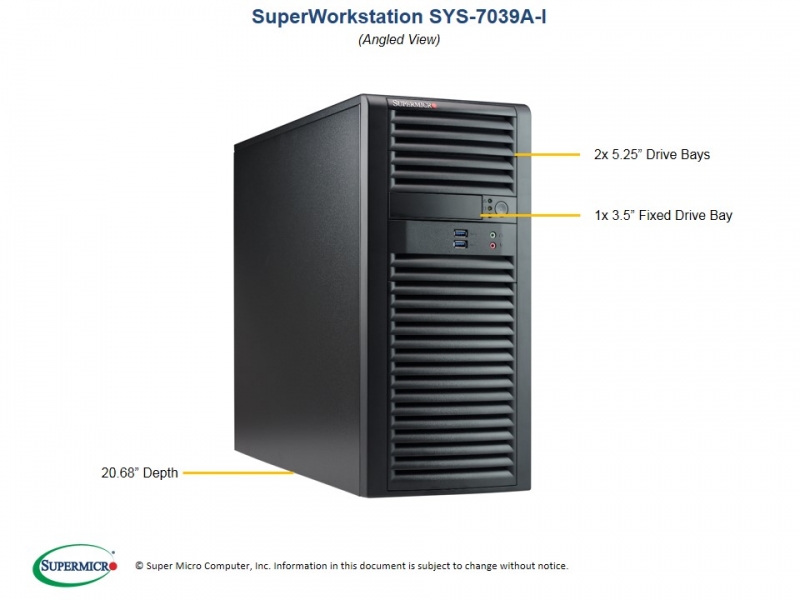

main product photo

Supermicro Superworkstation 7039a-i 4u Tower Dual Socket Lga3647 16x Dimm Intel C621 2 X Gb Lan

IMPI 4 x 3.5" HDD Fixed 1200w PSU SYS-7039A-I
$1,799.00
SKU: 269710
MPN: SYS-7039A-I Link
Manufacturer: https://www.supermicro.com/
Brand: Supermicro
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

　
　
1. Dual socket P (LGA 3647) supports
    Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
　
2. Up to 2TB ECC 3DS L/RDIMM, up to
    DDR4-2666MHz; 16 DIMM slots
　
3. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots,
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key, 2 PCI-E 3.0 NVMe
    x4 Internal Port(s)
　
4. 2x 1GbE LAN ports
　
5. 7.1 HD Audio
　
6. 4 Internal fixed 3.5" drive bays,
    2 5.25" peripheral drive bays
　
7. 1 M.2 slot, 2 NVMe support with
    optional cables
　
8. 1200W High-efficiency Power Supply
    Platinum Level Certified
Product SKUs
SuperWorkstation
  • SYS-7039A-i (Black)

Motherboard

Super X11DAi-N

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel® HT Technology
GPU Support

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, up to 2TB ECC 3DS RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual LAN with GbE from C621
IPMI
  • ASPEED AST2500
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
NVMe
  • 2 NVMe support with optional cables
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear, 2 front)
  • 2 USB 3.1 ports (rear)
Audio
  • 7.1 HD Audio with optical S/PDIF
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header

System BIOS
BIOS Type
  • UEFI 128M

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Mid-Tower
Model

Dimensions and Weight
Height
  • 16.7" (424mm)
Width
  • 7.6" (193mm)
Depth
  • 20.68" (525.3mm)
Gross Weight
  • 40 lbs (18.1 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Overheat LED
Ports
  • 2 front USB 3.0 Ports
  • 2 front HD/AC97 Audio Ports

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key

Drive Bays
Internal
  • 4 Fixed 3.5" drive bays
    (90° rotatable drive cage)
  • Enterprise SATA HDD only recommended
Peripheral Bay
  • 2x 5.25" standard drive bays
  • 4x 2.5" fixed drive bays (optional)

System Cooling
Fans
  • 1x 12cm rear exhaust fan
  • 1x 12cm front cooling fan
  • Optimized cooling technology for Whisper-Quiet Operation

Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  •   20A /  20A /   83A /  0.3A /   3A
  •   20A /  20A /   99A /  0.3A /   3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Level Certified94%+    Platinum Certified


Operating Environment / Compliance
RoHS
　
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
