Product SKUs

SYS-7049P-TR

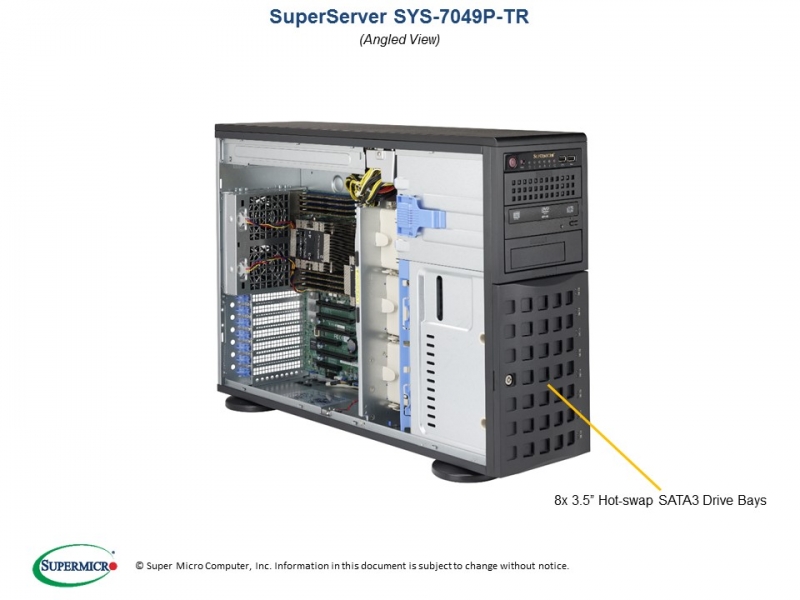

SuperServer 7049P-TR (Black)

Motherboard


Super X11DPi-N

Processor/Cache

CPU
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores
Up to 28 Cores with Intel® HT Technology

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices

Chipset
Intel® C621 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
Dual 1GbE LAN with Intel® X722
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC

Input / Output

SATA
8 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
Rear USB: 2 USB 3.0 + 2 USB 2.0
Front USB: 2 USB 2.0
USB Header: 1 Type A
Video
1 VGA port
Serial Port / Header
2 Fast UART 16550 serial
2 COM Ports (1 rear, 1 header)
DOM
2 SuperDOM (Disk on Module) ports

System BIOS

BIOS Type
AMI UEFI

Management

Software
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations
ACPI Power Management

PC Health Monitoring

CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors


Chassis

Form Factor
4U Rackmountable / Tower
Optional Rackmount Kit
Model
CSE-745BAC-R1K28B2

Dimensions and Weight

Height
17.8" (452mm)
Width
7.0" (178mm)
Depth
25.5" (648mm)
Package
24" (H) x 14" (W) x 26.5" (D)
Weight
Net Weight: 56 lbs (25.6 kg)
Gross Weight: 73.5 lbs (33.6 kg)
Available Colors
Black

Front Panel

Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Power Fail LED
Ports
2 USB Ports

Expansion Slots

PCI-Express
4 PCI-E 3.0 x16 slots
2 PCI-E 3.0 x8 slots
Support total of 6 Full-height AOC

Drive Bays

Hot-swap
8 Hot-swap 3.5" SATA3 drive bays
Peripheral Bays
3 Peripheral 5.25" drive bays

SAS / SATA Backplane

SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling

Fans
3x 80mm high-performance fans
2x 80mm PWM Rear Chassis fans

Power Supply

1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
1000W Output @ 100-140V, 8-12A, 50-60Hz
1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
1000W: +12V/83A; +5Vsb/4A
1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+
Platinum Certified
[ Test Report ]

Operating Environment

RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
