main product photo

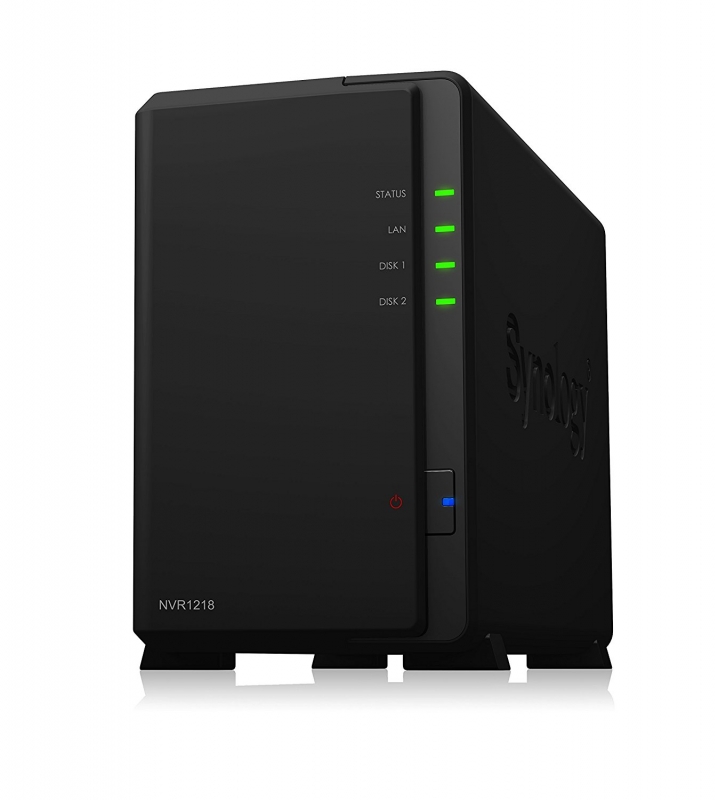

Synology Nvr1218 Network Video Recorder 2bay 12 Channel Nvr1218 (12 Channel)

$369.00
SKU: 251121
MPN: NVR1218 (12channel) Link
Manufacturer: https://www.synology.com/en-global/
Brand: Synology
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

All-in-one, stand-alone surveillance solution

Offering an effortless surveillance experience, Synology Network Video Recorder NVR1218 has the ability to display and record up to 12 IP cameras1 while being extremely energy-efficient.

Maximum 12 IP cameras

Energy efficiency

1080p HDMI output for local display

Watch surveillance feeds and manage cameras/recordings without using a computer. NVR1218 is equipped with a dedicated HDMI output providing 1080p display resolution on a monitor, while supporting 720p at up to 12 channels/30FPS.

Flexible deployment

Setup and deploy NVR1218 in remote or secure locations with no external network access required2. The support for Point of Sales (POS) systems allows NVR1218 to be integrated with transaction systems to enable video indexing capability against transaction records.

Expandable recording storage, up to 7 drives

NVR1218 can be connected to Synology DX5173 expansion unit to expand from 2 to 7 drives, allowing you to create RAID 5 volumes and find the ideal balance for your storage strategy. Once connected via eSATA with a specially designed locking cable, NVR1218's raw capacity can reach 70TB4.

Intuitive Surveillance Station to streamline deployment

Supporting powerful features from Surveillance Station and its mobile app, everything can be done without a PC.

　

Full support for Surveillance Station features

Surveillance Station provides a centralized, user friendly interface, letting you manage and monitor IP cameras in your shop or office. Learn more

　

On-the-go surveillance with the DS cam mobile app

DS cam is the mobile extension of Surveillance Station, allowing you to access Live View, playback recordings, adjust PTZ, and receive push notifications on your mobile device. Learn more

  • 1Status indicator
  • 2LAN indicator
  • 3Drive status indicator
  • 4Power button and indicator
  • 5Audio out
  • 6Audio in
  • 7USB 3.0 port
  • 8HDMI output
  • 9USB 2.0 port
  • 10Reset button
  • 11eSATA port
  • 12Power port
  • 13Fan
  • 141GbE RJ-45 port
  • 15COM port
  • 16Kensington Security Slot
Hardware Specifications
CPU
CPU Model Embedded NVR SoC
CPU Architecture 32-bit
CPU Frequency Dual Core 1.0 GHz
Memory
System Memory 1 GB DDR3
Storage
Drive Bays 2
Maximum Drive Bays with Expansion Unit 7
Compatible Drive Type*(See all supported drives) 3.5" SATA HDD
Maximum Internal Raw Capacity 20 TB (10 TB drive x 2) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 70 TB (10 TB drive x 7) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
External Ports
USB 2.0 Port 2
USB 3.0 Port 1
eSATA Port 1
COM Port 1
Video Outputs
Video Output HDMI X 1
Supported Video Resolution 1080p 60Hz
Audio Input 3.5 mm Stereo Audio Jack x 1
Audio Output 3.5 mm Stereo Audio Jack x 1
Appearance
Size (Height x Width x Depth) 165 mm x 100 mm x 225.5 mm
Weight 0.9 kg
IP Camera Support
Maximum Channel Number 12 (including 4 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 360 FPS @ 720p (1280x720), 12 Channels
100 FPS @ 1080p (1920×1080), 10 Channels
60 FPS @ 3M (2048x1536), 6 Channels
40 FPS @ 5M (2591x1944), 4 Channels
Total FPS (MJPEG)* 120 FPS @ 720p (1280x720), 12 Channels
80 FPS @ 1080p (1920×1080), 8 Channels
40 FPS @ 3M (2048x1536), 6 Channel
30 FPS @ 5M (2591x1944), 4 Channel
Video Codec
  • MJPEG
  • MPEG-4
  • H.264
  • H.265 (output via local display is not supported)
  • MxPEG (output via local display is not supported)
Audio Codec
  • PCM
  • ADPCM
  • G711
  • G726
  • AMR
  • AAC
Notes In our test environment, live view streams are delivered via Local Display; video live-viewing and recording share the same video stream from the camera. Surveillance Station throughput is tested with an Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera.
Others
RJ-45 1GbE LAN Port 1
Wake on LAN/WAN
System Fan 80 mm x 80 mm x 1 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 19 dB(A)
　
Scheduled Power On/Off
Power Supply Unit / Adapter 60W
　
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 13.64 W (Access)
4.32 W (HDD Hibernation)
　
British Thermal Unit 46.57 BTU/hr (Access)
14.75 BTU/hr (HDD Hibernation)
　
Environment Temperature
Operating Temperature 5°C to 45°C (40°F to 113°F)
Adapter Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 3 Year Hardware Warranty
Notes
  • Support for Wake on WAN needs switch and routers which recognize Magic Packet.
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+ (Read Only, with max. volume size 2TB)
Storage Management
Maximum Internal Volume Number 256
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5 (with Expansion Unit)
  • RAID 6 (with Expansion Unit)
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5 (with Expansion Unit)
  • RAID 1 to RAID 5 (with Expansion Unit)
  • RAID 5 to RAID 6 (with Expansion Unit)
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5 (with Expansion Unit)
  • RAID 6 (with Expansion Unit)
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • RAID 5 (with Expansion Unit)
  • JBOD (with Expansion Unit)
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID (with Expansion Unit)
  • RAID 1 (with Expansion Unit)
  • RAID 5 (with Expansion Unit)
System Management
Maximum Local User Accounts 1024
Maximum Local Groups 256
Maximum Shared Folder 256
Windows Access Control List (ACL) Integration
Log Center
Syslog Events per Second 100
Add-on Packages
VPN Server
Maximum Connections 5
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
  • HDD bracket X 1
  • USB installation dongle X 1
Optional Accessories
  • Surveillance Device License Pack
  • Expansion Unit: DX517 X 1

Synology Network Video Recorder NVR1218 is an all-in -one energy efficient private surveillance solution with HDMI output for PC-less management and live monitoring. NVR1218 supports up to 12 channels of 720p/30fps camera streams. Point of Sale (POS) system support combines business transaction records with surveillance recordings. Synology NVR1218 is backed by Synology's 3-year limited warranty.

Specification:

•CPU: Embedded NVR SoC dual-core 1.0Ghz
•RAM size : DDR3 1GB
•Compatible drive type : 3.5" SATA x 2 ( HDD not included )
•USB: 1 x USB 3.0 , 2 x USB 2.0 , eSATA x 1
•Video Output: HDMI x1
•Audio Output: 3.5mm Stereo Audio Jack x2
•Supported video output res : 1920 x 1080 (1080p) , 60Hz
•Size (HxWxD) (mm) : 165x100x225.5 mm
•Weight:0.9 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum Operating Altitude: 10,000 feet
