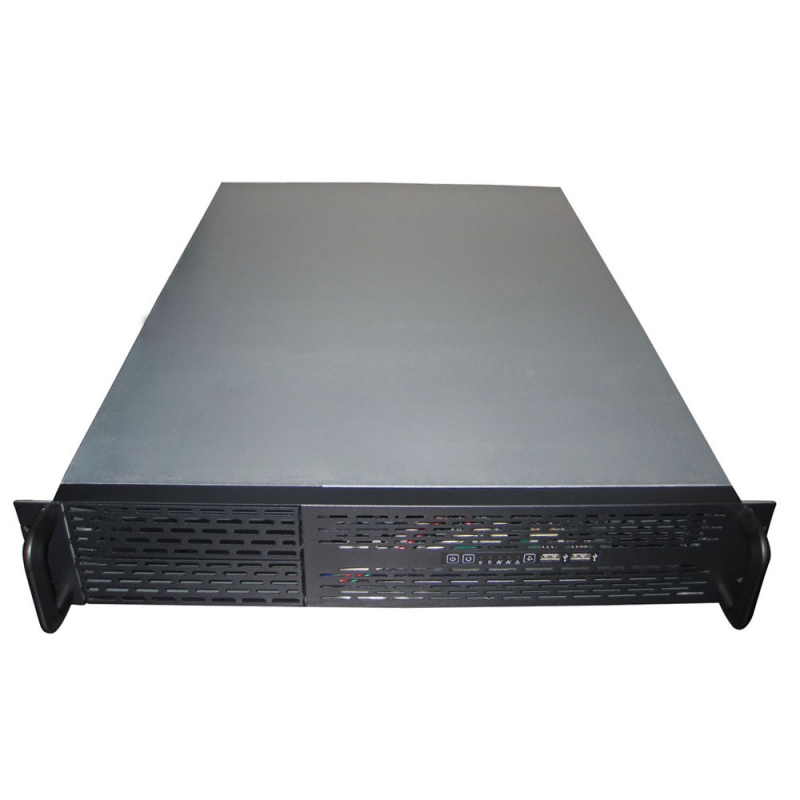

Tgc Rack Mountable Server Chassis 2U 650Mm Depth With Atx Psu Window - No Psu Tgc-23650
| SKU: | 272241 |
|---|---|
| MPN: | TGC-23650 Link |
| Manufacturer: | http://www.tgcipc.com/ |
| Brand: | Tgc |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Features:
2U rackmount design, meets EIARS-310C standard.
2 x 5.25" drive bay, 6 x 3.5 " drive bays
Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
4 x 80mm ball bearing middle fans wall for better ventilation
2x Front accessible USB port
Smooth border prevent lacerating your hands
Specifications
Specifications:
Drive Bay: Supports 6x 3.5" drives and 2x 5.25"drive
Cooling Fan: 4 x 80mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector: 2x front accessible USB port
Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply Options: Standard ATX, standard 2U or Redundant 1+1 power supply
Dimensions ( W x D x H ): 19" x 25.5" x 3.5" (483mm x 650mm x 88mm)
Packing: Single boxes
Weight: 9.4 kg/20.7 lb (NET) 12 kg/26.5 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock: 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
