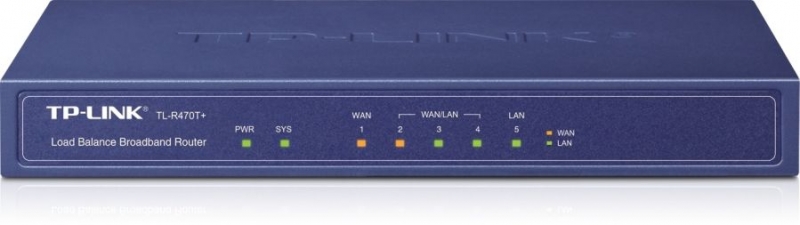

Tp-link 5-port Multi-wan Router For Small Office Tl-r470t +
| SKU: | 209742 |
|---|---|
| MPN: | TL-R470T+ |
| Manufacturer: | http://www.tp-link.com |
| Brand: | Tplink |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Superior Performance and High Stability
The router features a network dedicated processor, clocked at 400MHz for powerful processing performance, an internal power supply to allow for long term operation stability, and professional lightning protection design keeps your investments as safe as possible.
Three Changeable LAN/WAN Ports
The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
By the factory default, TL-R470T+ is set to work in the dual WAN ports mode: port 1 and port 2 are working as WAN ports, while port 3~5 are LAN ports.
Management for a Fluid Networking Experience
Integrating multiple load balancing strategies, IP and port based bandwidth control, session limit, domain filtering, and IP/MAC address filtering, the TL-R470T+ provides users with a fluid network experience, without lag and connection drops.
Easy to Install and Use
With user-friendly web-based management, remote management and configuration backup & restore functions, the TL-R470T+ provides many comprehensive features that are easy to deploy and maintain, especially for businesses lacking professional IT staff.
- Dynamic IP, Static IP, PPPoE,L2TP, PPTP and BigPond Cable Internet connection options easily connect to Internet
- Time-based access control allows parents or administrators to establish restricted access policies for children or staff
- IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC which guarantees the performance of VoIP or video applications
- Built-in DHCP server supports static IP address distribution
- Built-in firewall supports IP address filtering, Domain Name filtering, and MAC address filtering
- IP and MAC binding function effectively prevents ARP virus attacks
- Powerful DoS attack protection safeguards your network
- Virtual Server, Special Application, DMZ host and UPnP help users build their own servers
- DDNS helps users utilize remote management easily with a domain name
Hardware Features
STANDARDS AND PROTOCOLS
IEEE 802.3, 802.3u, 802.3x
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
INTERFACE
1 Fixed Ethernet WAN Port
1 Fixed Ethernet LAN Port
3 Changeable Ethernet WAN/LAN Ports
NETWORK MEDIA
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
BUTTON
Reset Button
POWER SUPPLY
Internal Power Adapter
DIMENTIONS( W x D x H )
209*126*26 mm
Software Features
WAN TYPE
Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
BASIC FUNCTION
DHCP Server, DHCP Client
MAC Address Modify/Clone, VPN Pass-through
Static Routing, Dynamic DNS
MULTI-WAN FUNCTION
WAN Load Balancing
Detecting Online
QoS
IP and Port Based Bandwidth Control
Session Limit
FORWARDING RULES
Virtual Server
Port Triggering
DMZ Host
UPnP
DDNS
Supports Dyndns / PeanutHull / Comexe / No-IP
VPN PASS-THROUGH
PPTP/L2TP/IP Sec
ACCESS CONTROL
Parental Control, Local Management Control,
Host List, Access Schedule, Rule Management
SECURITY
IP Address Filtering
MAC Address Filtering
Domain Name Filtering
DoS Protection
MANAGEMENT
Web Management
Port Mirror
Restore & Backup Configuration
Remote Web Management
Others
CERTIFICATION
CE, FCC, RoHS
PACKAGE CONTENTS
Load Balance Broadband Router TL-R470T+
Power cord
RJ-45 Ethernet Cable
WAN/LAN Ports Configuration Guide
Resource CD
TEMPERATURE
Operating: 0C~40C (32F~104F)
Storage: -40C~70C (-40F~158F)
HUMIDITY
Operating: 10%~90% RH Non-Condensing
Storage: 5%~90% RH Non-Condensing
