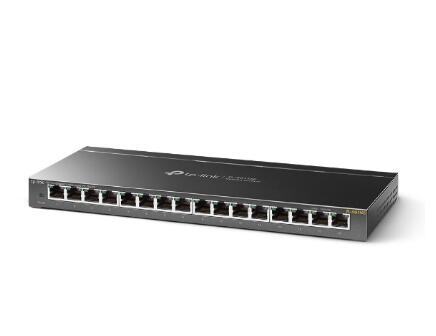

main product photo

Tp-link 16 Port Unmanaged Pro Desktop Switch Gbe(16) Steel Casing Black 3yr Wty Tl-sg116e(un)

Special Price $104.00 Regular Price $119.00
SKU: 266171
MPN: TL-SG116E(UN) Link
Manufacturer: https://www.tp-link.com/
Brand: Tp-link
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 9.3 W
Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in.
(286*111.7*25.4 mm)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG116E
Power Cord
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
