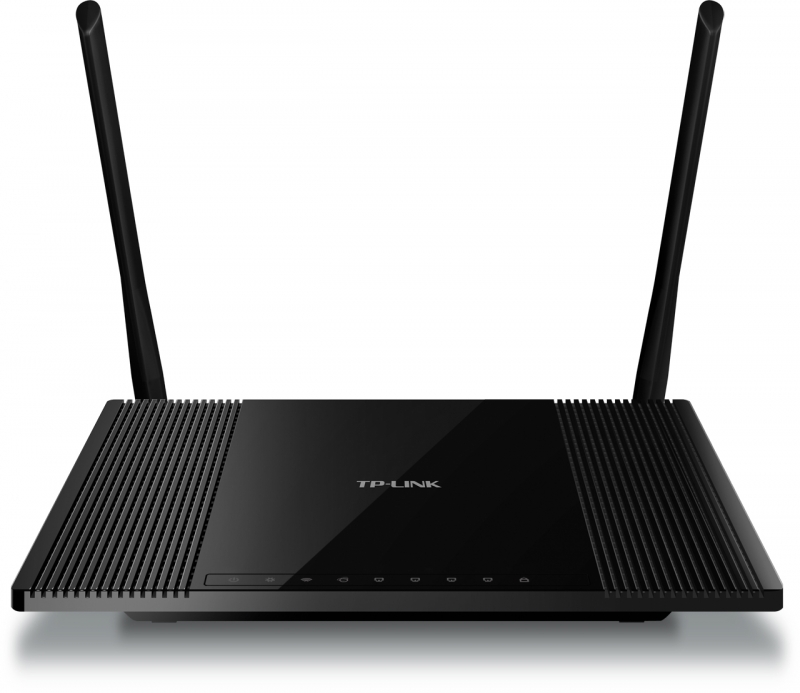

300Mbps High Power Wireless N Router

TL-WR841HP

High power amplifier and two detachable external 5dBi high gain antennas provide superior wireless range
Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
Excellent wireless speed over long distance brings a more enjoyable experience for your whole-home network access
300Mbps wireless speed ideal for video streaming, online gaming and VoIP



Excellent Wireless Speed over Long Distance

Excellent wireless speed over long distance brings a more enjoyable experience for your whole-home network access. You no longer have to endure poor wireless performance over long distance.

Wireless Speed up to 300Mbps

With Wireless N technology, TL-WR841HP provides much higher speed and better coverage than traditional 11G products. Speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls.


WPS

Instantly setup WiFi connections simply by pressing the "WPS" button with Utility.


Easy Setup

Either using the optimized user interface and setup wizardor the CD(included) setup wizard willallow youto get online quickly and easily.

What This Product Does

300Mbps High Power Wireless N Router TL-WR841HP is a powerful wireless solution well suited for the home or office. With 300Mbps wireless speeds, TL-WR841HP is ideal for streaming HD video, making VoIP calls and online gaming. What's more, featured with high power amplifier, 2 * 5dBi antennas and high transmission power, the device greatly boosts Wi-Fi performance.

Superior Wireless Range
High power amplifier and two detachable external 5dBi high gain antennas provide superior wireless range. With the TL-WR841HP, you can enjoy your wireless network not only in restricted indoor areas but also in your backyard or even by the pool.

Wall Penetrating Wi-Fi

Enhanced Wi-Fi signal provides incredibly strong penetrability, cutting through walls and obstacles, eliminating dead zones, with which, you don't have to be physically tethered to the walls or floors to access the Internet.

Specifications:

HARDWARE FEATURES
Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button WPS/Reset Button
External Power Supply 12VDC / 1A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 2*5dBi Detachable Omni Directional Antenna (RP-SMA)
Dimensions ( W x D x H ) 6.6in.x5.1in.x1.2in.(168.5mmx130mmx31.5mm)
WIRELESS FEATURES
Frequency 2.4-2.4835 GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER
Transmit Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
DHCP Server, Client, DHCP Client List,
Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Local Management
Remote Management
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N High Power Router
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
