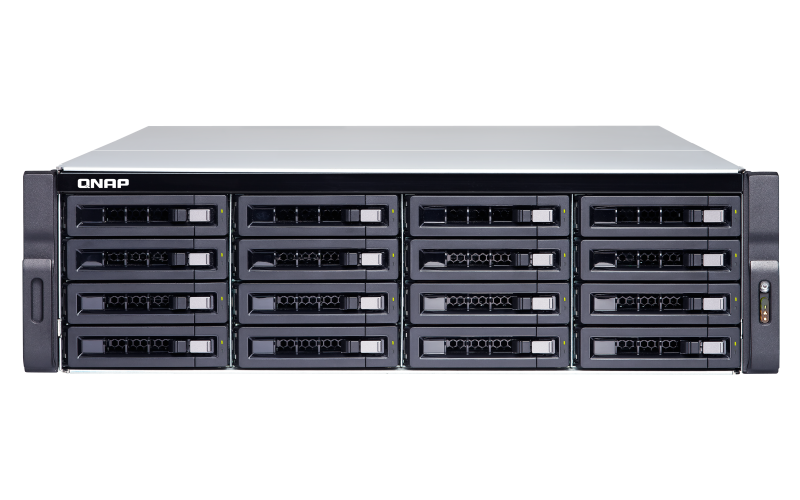

Qnap Ts-1683Xu-Rp-E2124 16 Bay Nas(No Disk) Xeon E-2124 16Gb 10Gbe Sfp+(2) Gbe(4) 3U 3Yr Ts-1683Xu-Rp-E2124
$6,341.00
| SKU: | 281177 |
|---|---|
| MPN: | TS-1683XU-RP-E2124 Link |
| Manufacturer: | https://www.qnap.com |
| Brand: | Qnap |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Specifications
▼
| CPU | Intel® Xeon® E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz) |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 16 GB UDIMM DDR4 ECC (2 x 8GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 4 |
| 10 Gigabit/ 5 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Jumbo Frame | |
| PCIe Slot |
4 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x8 (CPU) Slot 3: PCIe Gen 3 x4 (CPU) Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4 is preinstalled with a 10GbE network adapter
|
| USB 3.1 Gen 2 (10Gbps) Port |
2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps 4 x Type-A USB 3.1 Gen2 5V/1A 10Gbps |
| Form Factor | 3U Rackmount |
| LED Indicators | HDD 1-16, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130 × 481 × 573.5 mm |
| Weight (Net) | 13.76 kg |
| Weight (Gross) | 21.79 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 500W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical |
130.43 W
With drives fully populated
|
| Fan | System: 4 x 9.2cm fan (12V DC) |
| Sound Level | 53 db(A) |
| System Warning | Buzzer |
Note: Use only QNAP memory modules to maintain system performance and
stability. For NAS devices with more than one memory slot, use QNAP
modules with identical specifications. Warning: Using unsupported
modules may degrade performance, cause errors, or prevent the operating
system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
