Asus Intel® Xeon® E workload-optimized 5U tower server TS300-E10-PS4

$1,232.00
SKU: 285075
MPN: TS300-E10-PS4 Link
Manufacturer: https://www.asus.com
Brand: Asus
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

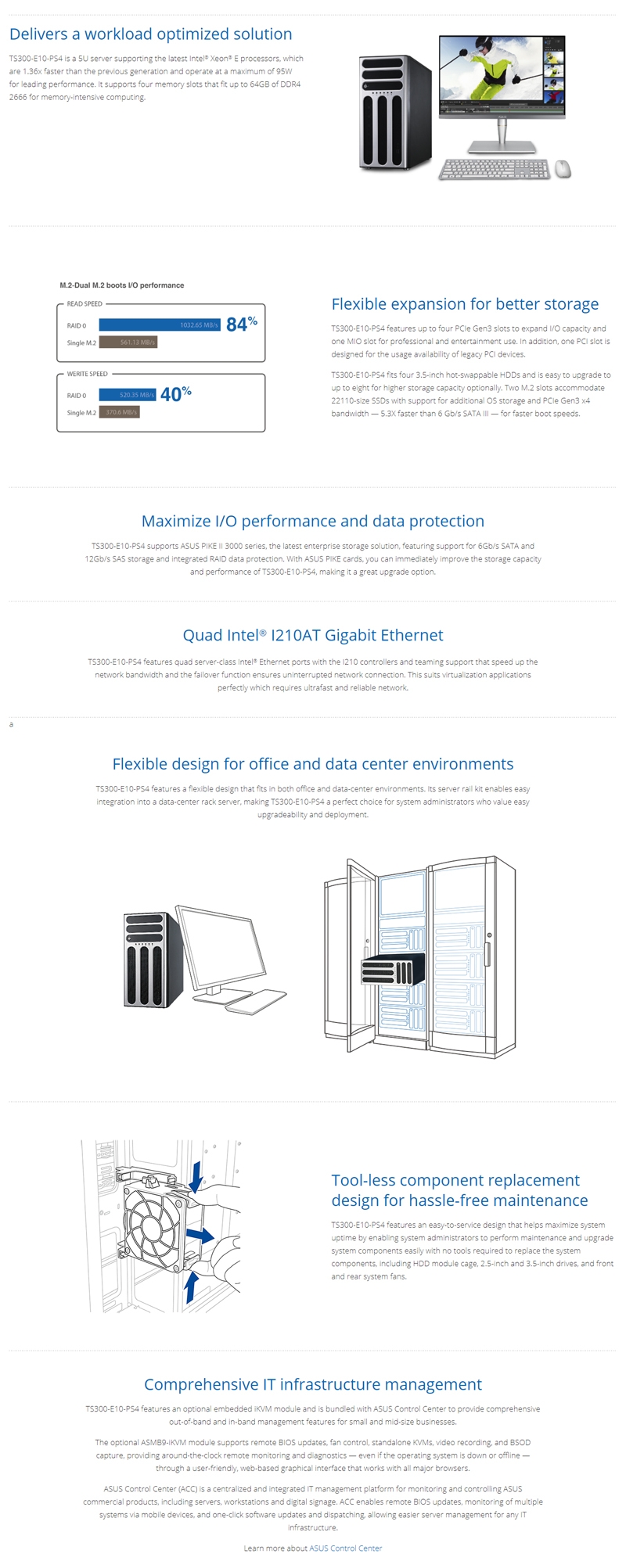

  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 64GB memory support (4 DIMMs)
  • High scalability with four PCIe Gen3 slots, one PCI legacy slot, and one MIO audio slot
  • Flexible storage design with four 3.5-inch HDDs and easy to upgrade to up to eight HDDs (optional)
  • Two M.2 slots accommodate 22110-size SSDs for faster boot speed
  • NVIDIA® Quadro® graphics card support
  • Quad Intel® Gigabit Ethernet with teaming support
  • Flexible design fits in the office or data center with server rail kit
  • Tool-less component replacement design for hassle-free maintenance
  • Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center
  • Processor / System Bus
    1 x Socket LGA1151
    Intel® Xeon® E Processors
    *Refer to support page for more information
  • Generation
    E10
  • Core Logic
    Intel® C246 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 64GB UDIMM
    Memory Type :
    DDR4 2666/2400
    Memory Size :
    16GB, 8GB, 4GB
    * Refer to support page for more information
  • Expansion Slots
    Total PCI/PCI-X/PCI-E/PIKE Slots: 4+1

    1 x PCIe 3.0 x16 slots (@x16/8 link)
    1 x PCIe 3.0 x8 slots (@ x8 link)
    1 x PCIe 3.0 x8 slot (@x4 link)
    1 x PCI slot
    1 x MIO slot for Audio Card
  • Storage
    SATA Controller :
    Intel® C246 Chipset
    8 x SATA3 6Gb/s ports
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • HDD Bays
    4 x Hot-swap 3.5/2.5" HDD Bays
    Optional(additional 4 x HDD bays)
  • Auxiliary Storage FDD/CD/DVD
    4 x 5.25" media bays
    (Options: No ODD/DVD-RW)
    (DVD-RW default for North America)
  • Networking
    4 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2500 with 64MB VRAM
  • Front I/O Ports
    2 x USB 3.1 Gen1 ports
    2 x USB 2.0 ports
    1 x Audio out port (with optional MIO card)
    1 x MIC in port (with optional MIO card)
    1 x Power Botton
    1 x Reset Botton
  • Rear I/O Ports
    5 x RJ-45 ports (One for ASMB9-iKVM)
    2 x USB 3.1 Gen2 ports
    2 x USB 3.1 Gen1 ports
    1 x Internal A Type USB Port
    1 x VGA port
    1 x COM port
  • Switch/LED
    Front LED:
    1 x Power LED
    1 x Location LED
    1 x HDD Access LED
    1 x Message LED
    LAN 1-4 LED
  • OS Support
    Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html
  • Management Solution
    ASUS Control Center
    Optional ASMB9-iKVM for KVM-over-IP
  • Regulatory Compliance
    BSMI, CE
  • Dimensions
    445mm * 217.5mm * 545mm
    17.91" x 8.54" x 21.45"
  • Form Factor
    5U/Tower
  • Weight
    Net Weight: 15.0 Kg
    Gross Weight: 18.9 Kg
  • Power Supply
    500W 80PLUS Single Power Supply, Gold
    Rating: 100-240Vac, 7-3.5A, 50/60Hz, Class I
  • Environment
    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
