SPECIFICATIONS

Dimensions	207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Weight	500 g (1.10 lb)
Total Non-Blocking Throughput	10 Gbps
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Max. Power Consumption (Excluding PoE Output)	8W
Power Method	24VDC, 2.5A
Supported Voltage Range	9 - 30VDC, 5A
Power Supply	24VDC, 2.5A Power Adapter (Included)
LEDs System RJ45 Data Ports SFP Data Ports	Status PoE, Link/Speed/Activity Link/Activity
Networking Interfaces	(8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Management Interface	Ethernet In-Band
Certifications	CE, FCC, IC
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature	-10 to 50° C (14 to 122° F)
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
PEO
PoE Interface	(8) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. Passive PoE Wattage per Port	15W
24V Passive PoE Voltage Range	24V

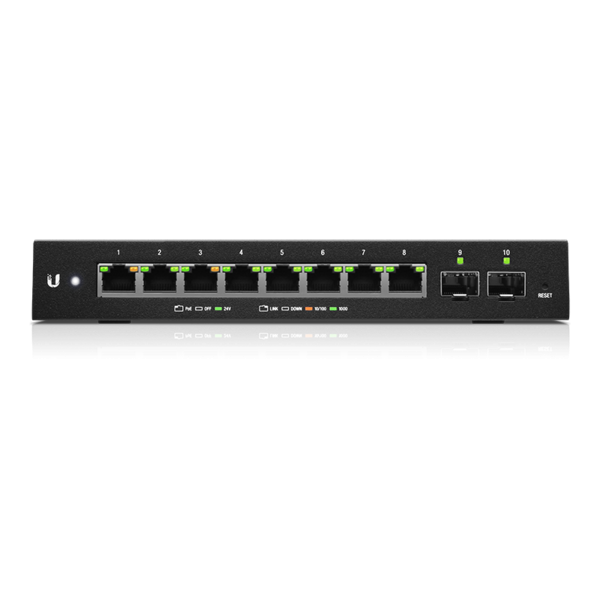

Ubiquiti EdgeSwitch 10XP Gigabit 24V PoE | 8x 1Gbps Ethernert with 24V PoE, 2x 1Gbps SFPOptimized for WISP deployments, the EdgeSwitch® 10XP is a managed PoE switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™).Features (8) 10/100/1000 Mbps ethernet ports and (2) SFP ports Supports 24V passive PoE output on all RJ45 ports Powered by external AC/DC adapter Warranty1-year limited warranty.WHY 4CABLING? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
