Dimensions	443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight With Mount Brackets	2.80 kg (6.17 lb) 2.89 kg (6.37 lb)
Total Non-Blocking Line Rate	18 Gbps
Max. Power Consumption	150W
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 150W DC
Shock and Vibration	ETSI300-019-1.4 Standard
LEDs Per Port RJ45 Data Ports SFP Data Ports	PoE, Speed/Link/Activity Speed/Link/Activity
Networking Interfaces	(16) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Management Interface	UART Console Out-of-Band, Ethernet In-Band
PoE Interfaces	PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) 24VDC Passive PoE (pins 4, 5+; 7, 8-)
Voltage Range 802.3at Mode 24V Passive PoE	50-57V 20-27V
Max. Wattage per Port PoE+ Passive PoE	34.2W 17W
Rack-Mount	Yes, 1U High
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC

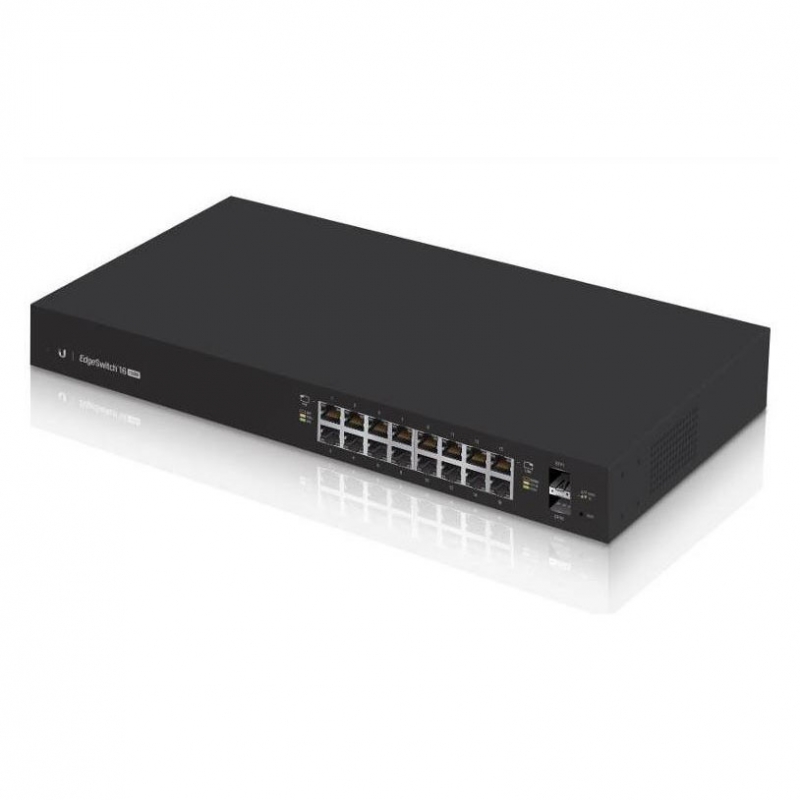

Ubiquiti EdgeSwitch ES-16-150W Managed PoE+ Gigabit Switches 16 Port 150W Managed PoE+ Gigabit Switches with SFP - ES-16-150W Build and expand your network with Ubiquiti Networks® EdgeSwitch®, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routeing capability. FEATURES Non-Blocking Throughput Switching Performance Gigabit Ethernet RJ45 and SFP+/SFP Ports Auto-Sensing IEEE 802.3af/at PoE PoE+ Flexibility Fibre Connectivity Comprehensive User Interface SPECIFICATIONS (16) Gigabit RJ45 Ports (2) SFP Ports (1) Serial Console Port Non-Blocking Throughput: 18 Gbps Switching Capacity: 36 Gbps Forwarding Rate: 26.78 Mpps Maximum Power Consumption: 150W Supports POE+ IEEE 802.3at/af and 24V Passive PoE Rackmountable with Rack-Mount Brackets (Included) WARRANTY 1-year warranty. WHY 4CABLING? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
