Dimensions	485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
Weight	4.7 kg (10.4 lb)
Networking Interfaces	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput	26 Gbps
Switching Capacity	52 Gbps
Forwarding Rate	38.69 Mpps
MAC Address Table	16384
Maximum Aggregations	6
Monitoring Sessions	1
Maximum VLANs	255
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 250W DC
Max. Power Consumption Including PoE Output Excluding PoE Output	250W 30W
LEDs Per Port RJ45 Data Ports SFP Data Ports	PoE, Speed/Link/Activity Speed/Link/Activity
Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3	9.1 dBr 14.2 dBr 16.8 dBr 21.2 dBr
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
POE+ PER PORT
PoE Interfaces	PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3at Mode	50–57V
Max. Passive PoE Wattage per Port	17W
24V Passive PoE Voltage Range	20-27V

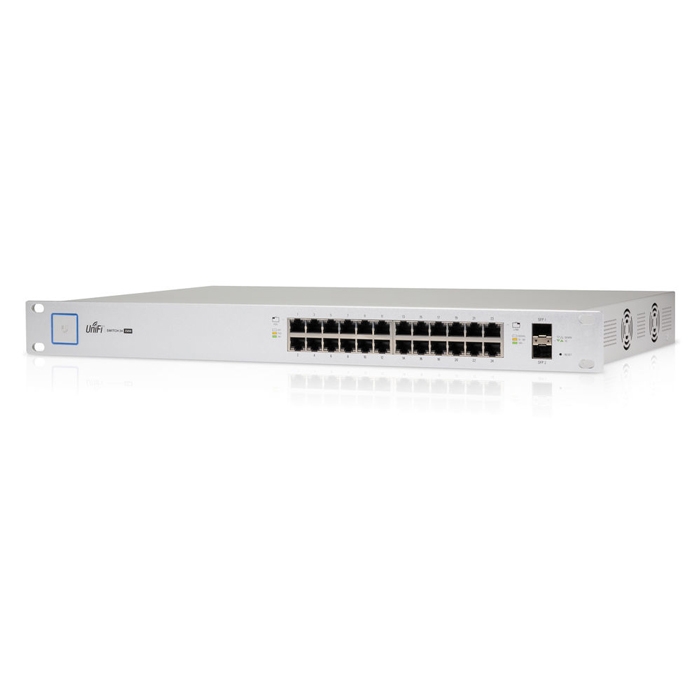

Ubiquiti UniFiSwitch, 24-Port Gigabit 250W PoE switch Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 70 Gbps for 48-port models.   FEATURES Non-Blocking Throughput Switching Performance Gigabit Ethernet RJ45 and SFP+/SFP Ports Auto-Sensing IEEE 802.3af/at PoE   SPECIFICATIONS (24) Gigabit RJ45 Ports (2) SFP Ports (1) Serial Console Port Non-Blocking Throughput: 26 Gbps Switching Capacity: 52 Gbps Forwarding Rate: 38.69 Mpps Maximum Power Consumption: 250W Supports PoE+ IEEE 802.3at/af Rack-Mountable   WARRANTY 1-year manufacturer's warranty. WHY 4CABLING? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
