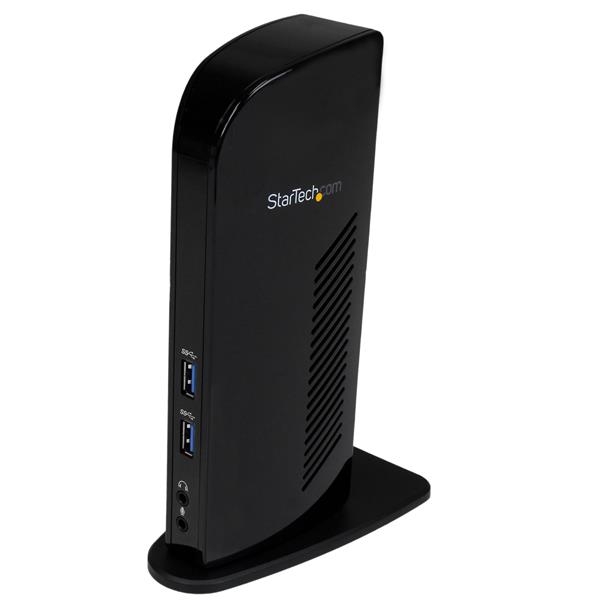

Startech Universal Usb 3.0 Laptop Docking Station Dvi With Audio And Ethernet - Usb 3 Port Replicator
| SKU: | 205404 |
|---|---|
| MPN: | USB3SDOCKD Link |
| Manufacturer: | http://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port. The USB3SDOCKD Universal USB 3.0 Laptop Docking Station/Port Replicator with DVI, Audio and Ethernet adds an external DVI output, headphone/mic, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports, all from a single device and over a single SuperSpeed USB 3.0 connection.
This highly versatile port replicator/universal docking station lets you expand or mirror your computer's main desktop at video resolutions up to 1920x1200, with DVI monitor output, as well as an included DVI to VGA adapter.
The docking station also combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into an all-in-one laptop/notebook docking station that makes for the perfect accessory for users who need to connect and manage many devices on their laptops at home or at the office.The ARMTBLITI is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Brand Name: StarTech.com
Connectivity Technology: Wired
DVI Out: Yes
DVI: Yes
Device Supported: Notebook
Microphone: Yes
Network (RJ-45): Yes
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Product Type: Docking Station
Total Number of USB Ports: 6
Built-in Devices
Speakers: Yes
General Information
Brand Name: StarTech.com
Manufacturer Part Number: USB3SDOCKD
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port. The USB3SDOCKD Universal USB 3.0 Laptop Docking Station/Port Replicator with DVI, Audio and Ethernet adds an external DVI output, headphone/mic, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports, all from a single device and over a single SuperSpeed USB 3.0 connection.
This highly versatile port replicator/universal docking station lets you expand or mirror your computer's main desktop at video resolutions up to 1920x1200, with DVI monitor output, as well as an included DVI to VGA adapter.
The docking station also combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into an all-in-one laptop/notebook docking station that makes for the perfect accessory for users who need to connect and manage many devices on their laptops at home or at the office.The ARMTBLITI is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Name: Universal USB 3.0 Laptop Docking Station - DVI with Audio and Ethernet
Product Type: Docking Station
Interfaces/Ports
DVI Out: Yes
DVI: Yes
Headphone: Yes
Host Interface: USB
Microphone: Yes
Network (RJ-45): Yes
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Total Number of USB Ports: 6
Miscellaneous
Additional Information:
Universal docking station adds an external DVI monitor output that can extend or mirror the desktop at up to 2048x1152
USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
Laptop docking station provides two additional USB 3.0 and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
Green Compliant: Yes
Physical Characteristics
Colour: Black
Height: 126.2 mm
Length: 7.7 mm
Weight (Approximate): 364.3 g
Width: 77 mm
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Specifications
| Hardware | |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, 802.3u, and 802.3ab |
| Indicators | |
| LED Indicators | Power (Blue) |
| USB Hub Link (Blue) | |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 920 g [32.5 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Digital Resolutions | 1920 x 1200 |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| USB 3.0 - 4.8 Gbit/s | |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 126.3 mm [5 in] |
| Product Length | 195.7 mm [7.7 in] |
| Product Weight | 364 g [12.8 oz] |
| Product Width | 77 mm [3 in] |
| Power | |
| Input Voltage | Universal 115 ~ 230 AC |
| Output Current | 4A |
| Output Voltage | 5 DC |
| Power Consumption (In Watts) | 20 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit), Vista (32-bit or 64-bit), XP SP3 (32-bit) Mac OS? 10.6 and later (tested up to 10.11) |
| Special Notes / Requirements | |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHz or betterRAM: 2GB or higherAvailable USB 3.0 port |
| What's in the Box | |
| Included in Package | Driver CD |
| DVI to VGA Adapter | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| USB 3.0 Cable | |
| USB 3.0 Docking Station | |
| Hardware | |
| Displays Supported | 1 |
| Chipset ID | DisplayLink - DL-3700 VIA/VLI - VL810 Terminus - FE1.1 Realtek - RTL8211E |
| Bus Type | USB 3.0 |
| 4K Support | No |
| Environmental | |
| Storage Temperature | -10?C to 80?C (14?F to 176?F) |
| Operating Temperature | 10?C to 40?C (50?F to 104?F) |
| Connector(s) | |
| Connector Type(s) | USB Type-B (9 pin) USB 3.0 Female |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| RJ-45 Female | |
| DVI-I (29 pin) Female | |
| 3.5 mm Mini-Jack (3 Position) Female | |
Vendor Info
The USB3SDOCKD Universal USB 3.0 Laptop Docking Station/Port Replicator with DVI, Audio and Ethernet adds an external DVI output, headphone/mic, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports, all from a single device and over a single SuperSpeed USB 3.0 connection.
This highly versatile port replicator/universal docking station lets you expand or mirror your computer's main desktop at video resolutions up to 1920x1200, with DVI monitor output, as well as an included DVI to VGA adapter.
The docking station also combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into an all-in-one laptop/notebook docking station that makes for the perfect accessory for users who need to connect and manage many devices on their laptops at home or at the office.
