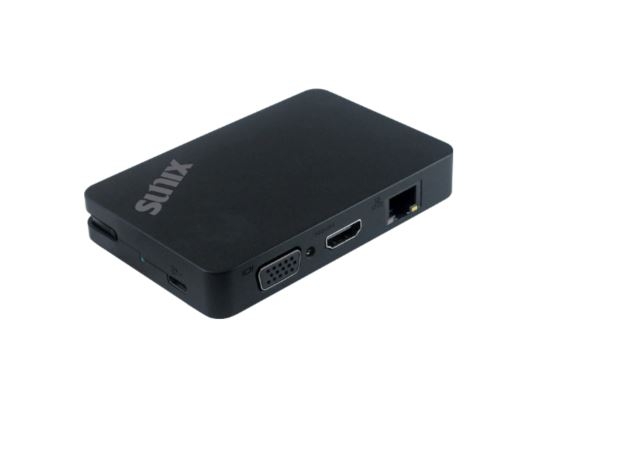

Sunix USB Type C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Delivery2.0 CCV51PB
$109.00
| SKU: | 294868 |
|---|---|
| MPN: | CCV51PB Link |
| Manufacturer: | https://www.sunix.com |
| Brand: | Sunix |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Introduction
SUNIX portable Mini Dock (CCV51PB) offers the combined
functionality of a 4-in-1 USB3.0 device docking station,
converting a single USB-C port into multiple connection
ports, including a HDMI UHD (video & audio), VGA,
Gigabit Ethernet network, and USB 3.0 connectivity.
There's no need to plug in multiple cables every time
you return to your desk, making easy to connect your USB
Type-C equipped laptop to a complete workstation.
HDMI2.0/VGA/Ethernet/USB3.0 connects your USB-C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type-C tethered cable. This small, multiple-interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®-based PC, Apple® MAC®-OS, and Google® Chrome operation system.
HDMI2.0/VGA/Ethernet/USB3.0 connects your USB-C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type-C tethered cable. This small, multiple-interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®-based PC, Apple® MAC®-OS, and Google® Chrome operation system.
Features

Interfaces

HDMI or VGA Video Output
Use either the HDMI port or VGA port for video output & office presentation.

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight

Application

Specifications
▼
Hardware
| Model | CCV51PB |
| Description | USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Delivery2.0 |
| USB Standard | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Input Interface |
USB TypeC
USB Type-C Displayport Alternate Mode
|
| Output Interface |
USB Power Delivery Type-C x 1-port USB 3.0 TypeA x 1-port Gigabit Ethernet x 1-port VGA(RGB) x 1-port HDMI Ver1.4 x 1-port |
| LED indicator |
Green for USB Link Ready with USB Bus Power Mode
Blue for USB Power Charging Mode
|
| Power Consumption |
USB Bus Power 2.5W @ 5VDC (board only without power output to device) |
USB Communication
| Interface | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Output USB Port |
USB Type-A Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) |
| No. of Port | 1-port |
| Power source |
USB Bus-Power 5V@1.5A from USB Type-C
USB Power Delivery 2.0 : 5/20VDC
|
| Power output | USB port supports BC charging v1.2 +5VDC / Maximum 1.5A |
| Over Current Protection | USB TypeA Port: +5VDC |
Note: Total power output capacity will be limited by system power supply.
Ethernet Communication
| Standard | IEEE 802.3/ 802.3u/ 802.3ab |
| Interface |
Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX |
| No. of Port | 1port |
| PCB Connector | RJ45 with LED Indication |
Video and Audio Communication
| Mode | Extend mode, Mirror mode, Screen Rotation mode | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard |
HDMI Ver1.4 VGA RGB |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Video |
HDMI1.4 resolution up to 3840x2160@30Hz*
VGA resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI1.4 Resolution support |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA Resolution Support |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio |
Digital Audio output over HDMI connectivity Note: VGA does not support audio output |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| PCB Connector |
Standard HDMI Female x 1-port VGA D-Sub 15pin Female x 1-port |
Driver Support (Driver Free)
| Windows | Windows 10 (32/64bit) or above |
| APPLE MAC | MAC OS X 10.10 (Yosemite) or above |
| Google Chrome | Chrome OS Version 42.x or above |
