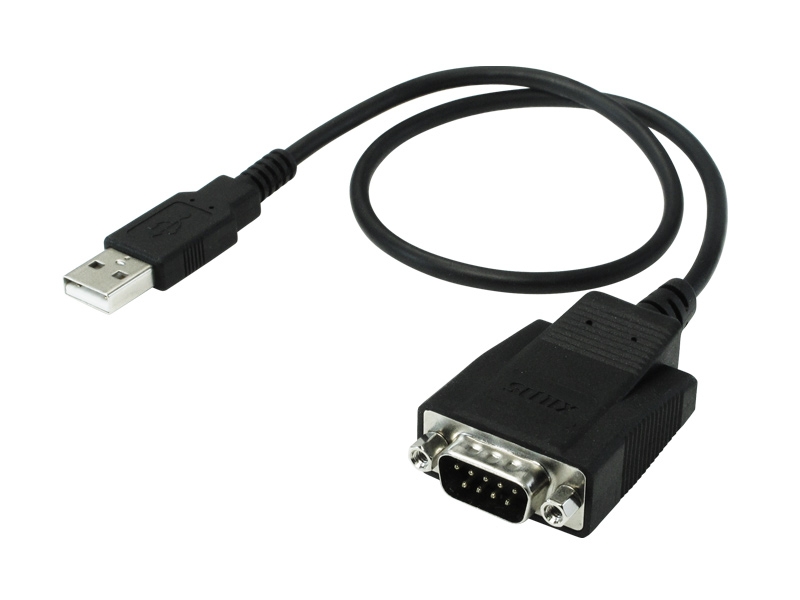

Sunix Usb To Db9/ Rs232 Serial Converter 35cm Cable Utd1009df
$18.00
| SKU: | 269683 |
|---|---|
| MPN: | UTD1009DF Link |
| Manufacturer: | http://www.sunixusa.com/ |
| Brand: | Sunix |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
- Expands one independent RS-232 serial port through USB interface.
- Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
- No IRQ, DMA, I/O address resource required.
- Supports USB 2.0 and USB 1.1 compatible.
- Serial port provides transmission rate up to 115.2Kbps.
- Built-in ± 15KV ESD protection for all serial signals.
- Compact Size and low power consumption.
- Supports USB bus power without additional external power.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows and Linux.
Specifications
▼
Introduction
SUNIX ComHub UTS series transform your Universal Serial Bus (USB) port into asynchronous RS-232 serial ports for communication with serial devices. The UTS1009DF adapter is compatible with both USB 2.0 and 1.1 specifications and provides serial port with transfer speed up to 115.2Kbps. It provides a quick, simple and cost-effective way to bring the advantages of data accessibility and mobile solution for kinds of commercial and industrial automation applications.
Specifications
Serial Communication
| Interface | RS-232 | Baud rate | 50bps ~115.2Kbps |
| Controller | FTDI FT232RL | Data bit | 5, 6, 7, 8 |
| BUS | Universal Serial Bus (USB) | Stop bit | 1, 1.5, 2 |
| No. of Port | 1-port | Parity | even, odd, none, mark, space |
| IRQ & IO | Assigned by System | Flow Control | None, Xon/Xoff, RTS/CTS |
| FIFO | 128 Byte - TX 256 Byte - RX | ||
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND | ||
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV ESD IEC61000-4-2 Contact Discharge | ||
| PCB Connector | DB9 Male with Screw Nut | ||
Power
| Power Source | USB Bus Power +5VDC (±5%) |
| Standby Power Consumption | <100mA / 5VDC |
| Working Power Consumption | <150mA / 5VDC |
Driver Support
| Windows Client | XP / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2008R2 / 2012R2 (X64) |
| Windows Embedded | CE4.2 / 5.2 / 6.0 / 7.0 / 2013 |
| Linux | Linux 2.6.x or later |
Regulatory Approvals
| EMC | EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 JAPAN: VCCI |
| Green | RoHS, CRoHS, WEEE |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 15 x 45 x 33 mm |
| Cable Length | 350mm (1.14ft) |
