About

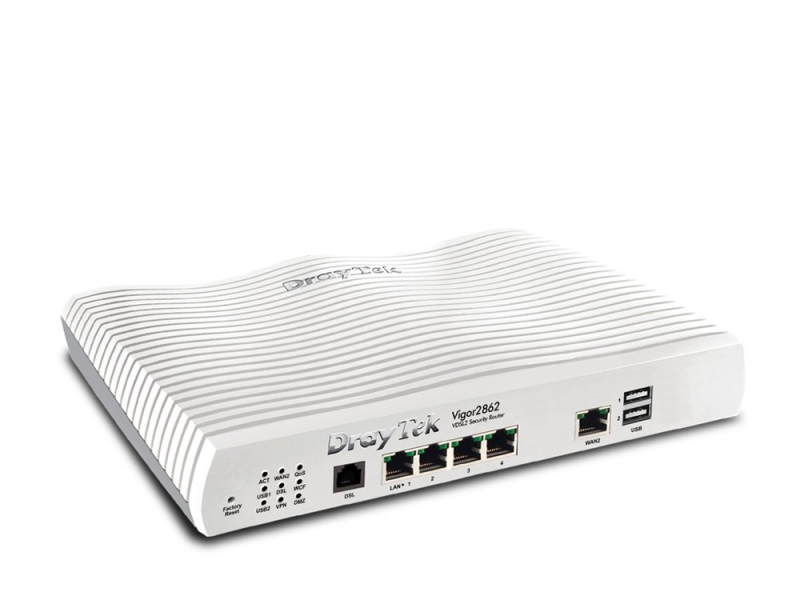

Vigor2862 Series is a VDSL2/ADSL2+ Security Firewall router which is compatible with variants of ADSL and VDSL, VDSL bonding is also supported on model Vigor2862B and Vigor2862Bn. All the models have an RJ-11 DSL port, and a Gigabit Ethernet WAN port which can be used with a cable-modem to connect to a second line for load balancing or failover, there are also two USB ports which can work with 3G/4G/LTE USB modems to add wireless connectivity. Vigor2862 Series features comprehensive firewall and content security management (CSM) to secure the local network.It can also be a central management portal for Vigor APs and Vigor Switches, providing Network Administrator a simpler way to maintain all the network devices.

ADSL

• ANSI T1.413 (ADSL)
• ITU G.992.1 G.dmt (ADSL)
• ITU G.992.2 G.lite (ADSL)
• ITU G.992.3 (ADSL2)
• ITU G.992.3 Annex M/J (ADSL2)
• ITU G.992.5 (ADSL2+)
• AITU G.992.5 Annex M/J (ADSL2+)

VDSL

• ITU G.993.1 (VDSL), ITU-T G997.1
• ITU G.993.2 (VDSL2)
• VDSL Band Plan: 997, 998
• VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a

WAN

• Support fallback to ADSL2/2+ when fail to connect in VDSL2
• xDSL WAN
  • DHCP Client
  • Static IP
  • PPPoE (and pass through)
  • PPPoA
  • MPoA
  • 802.1p/q VLAN Tagging
  • Default VLAN/PVC profile by region
• Giga Ethernet WAN
  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
  • 802.1q VLAN Tagging
• USB WAN
  • Support PPP / DHCP mode (for 3G/4G)

Dual WAN

• Load Balance and Route Policy : 50 profiles
• WAN connection failover
• Multiple-VLAN

LAN

• Support IPv6 LAN
• Port-based / Tag-based VLAN
• Bind IP to MAC Address
  • Disable / Enable / Strict Bind
  • IP Bind list: 1024 entries
• LAN Port Mirror
• Wired 802.1x
• Web Portal
• Support IP Pool Count more than 253 (up to 1022) for LAN1~3 subnet
• 8 x Multiple Subnet LAN

Firewall

• NAT
  • DMZ Host (for DSL / GbE / Backup WAN)
  • Port-Redirection (40 profiles)
  • Open Port (40 profiles)
  • Port Trigger (20 profiles)
• Object-based Firewall (v3)
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS Defense
• E-Mail alert (DoS Attack/APPE) and logging via syslog
• Time Schedule Control
• User Management
  • User-based / Rule-based
  • Up to 200 Profiles
  • Support external authentication by LDAP/RADIUS/TACACS+
  • Support Data-base & Time-base Quota
  • Schedule Control to delete or disable account automatically

CSM

• Service Activation Wizard
• APP Enforcement (IM/P2P Application v3)
  • Up to 32 Profile
  • APPE Signature Upgrade
• URL ContentFilter :
  • URL Access Control (Keyword Blocking)
  • Pass / Block Web Feature(Cookie, Proxy, Upload File extension)
  • Support File Extension Object: Image, Video, Audio, Java, Active X, Compression, Execution, P2P
• WEB Content Filter
  • Service activation wizard in main bar
  • Support Cyren / BPjM
  • White/Black list for Keyword Object/Group
• DNS Filter for WCF/UCF

VPN

• 32 Simultaneous VPN
• Protocol: PPTP, IPsec, L2TP, L2TP over IPsec
• Encryption: MPPE and Hardware-based AES/DES/3DES
• Authentication: MDS, SHA-1
• IKE Authentication: Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN(Remote Dial-in User)
• DHCP over IPSec
• IPSec NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-Through
• VPN Wizard
• mOTP
• SSL VPN : 16 Tunnels
• Support TLS/SSL Encryption v3.0
• VPN Trunk with Load Balance / Backup

Routing

• Static Route (IPv4 up-to 30 entries / IPv6 up-to 40 entries)
• RIPv2
• Policy-based Routing
• Inter-VLAN Routing

Bandwidth Management

• Bandwidth Limitation
• Session Limitation (Up to 20 lists)
• QoS (Quality of Service)
  • Guaranteed bandwidth for VoIP
  • Class-based Bandwidth Guaranteed by user-defined traffic categories
  • DiffServ Code Point classifying
  • 4-level priority for each direction (Inbound/Outbound)
• Layer-3 (TOS/DSCP) QoS Mapping
• APP QoS

Central Management

• AP Management: 20 (independent with External Device feature)
• VPN Management : 8
• External Devices : 30

Network Feature

• Packet Forwarding Acceleration (Default is disabled)
• DHCP Client/Relay/Server
• DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
• IGMP Proxy V2/V3
• IGMP Snooping
• Dynamic DNS
• LAN DNS / DNS Forwarding
• DNSSEC
• NTP client
• Call Scheduling
• RADIUS / TACACS+ client
• Internal RADIUS server
• Active Directory /LDAP compatible (client)
• DNS Cache/Proxy
• UPnP 50 sessions
• Wake on LAN
• Bonjour service
• Support SmartMonitor (Up to 30 PCs)

System Management

• Web-based user interface (HTTP/HTTPS)
• Quick Start Wizard
• Dashboard
• CLI (Command Line Interface, Telnet/SSH)
• Administration access control
• Login Page Greeting
• Configuration backup/restore
• Built-in diagnostic function
• Firmware upgrade via TFTP/FTP/HTTP/TR-069
• Logging via syslog
• SNMP V2/V2c/V3
• Data Flow Monitor
• Support SMS/E-mail Alert
• External Device (Master Mode)
• TR-069
• TR-104
• Support Multi-Firmware Upgrade Utility
• Two-level management (admin/user mode)

USB

• Printer Sharing
• File System
  • Support FAT32 file system
  • Support FTP function for file sharing
  • File explorer
  • Support Samba for file sharing (DrayTek’s own SMB protocol stack)
• Support USB Temperature Sensor
• Support USB Device Status for Disk, Modem, Printer and Sensor
• 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle

Wireless AP  (n/Bn/ac/Vac model)

• Support Single 2.4G (n/Bn model)
• Support Simultaneous 2.4G/5G Dual-Band (ac/Vac model)
• Auto channel selection
• Multiple SSID
• Hidden SSID
• Wireless LAN Isolation
• Wireless Rate-Control
• 64/128-bit WEP
• WPA/WPA2
• MAC Address Access Control (Total 64 entries)
• WPS
• WDS (Wireless Distribution System)
• WMM
• Access Point Discovery
• 802.1x Authentication
• Station List / Control
• Wireless Wizard
• SSID VLAN grouping with LAN port (Port-based VLAN)

VoIP  (Vac model)

• Protocol: SIP, RTP/RTCP
• VoIP Wizard
• VoIP Status
• 12 SIP Registrars
• G.168 Line Echo-cancellation
• Automatic Gain control
• Jitter Buffer
• Voice codec:
  • G.711
  • G.723.1
  • G.726
  • G.729 A/B
  • VAD/CNG
• DTMF Tone :
  • Inband
  • Outband (RFC-2833)
  • SIP Info
• FAX/Modem Support :
  • Tone Detection
  • G.711 Pass-through
  • T.38 for FAX
• Supplemental Services :
  • Internal Call (dial 10 or 20 for Phone 1 or Phone 2. Only for
    debug usage)
  • Call Hold/Retrieve/Waiting
  • Call Waiting
  • Call Waiting with Caller ID
  • Call Transfer
  • Call Forwarding (Always, Busy and No Answer)
  • CLIR (Calling Line Identification Restriction)
  • Call Barring (Incoming/Outgoing)
  • DND (Do Not Disturb)
  • MWI (Message Waiting Indicator) (RFC-3842)
  • Hotline
  • ZRTP
• PSTN Loop-through When Power Failure
• Dial Plan :
  • Phone Book
  • Digit Map
  • Call Barring
  • Regional
  • PSTN Setup
