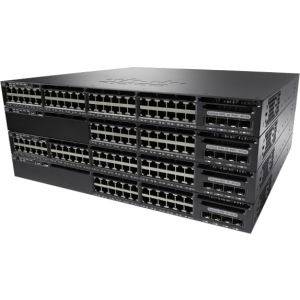

The Cisco^® Catalyst^® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise^®-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. The Cisco Catalyst 3650 Series Switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. They can help you increase wireless productivity and reduce your TCO.

Product Overview

●   Integrated wireless controller capability with:

◦     Up to 40G of wireless capacity per switch (48-port models)

◦     Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)

●   24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports

●   Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports

●   24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments

●   Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput

◦     Dual redundant, modular power supplies and three modular fans providing redundancy^[1]

◦     Support for external power system RPS2300 on the 3650 mini SKUs for power redundancy¹

◦     Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor

●   Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features

●   Single universal Cisco IOS^® Software image across all license levels, providing an easy upgrade path for software features

●   Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
