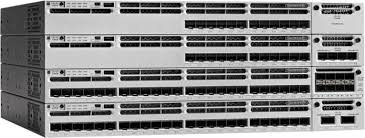

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Brand Name: Cisco
Ethernet Technology: Gigabit Ethernet
Form Factor: Rack-mountable
Layer Supported: 3
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
Port/Expansion Slot Details: Gigabit Ethernet
Power Source: Power Supply
Product Family: Catalyst 3850
Product Type: Ethernet Switch
Stack Port: Yes
Total Number of Network Ports: 48
?
| General Information |
| Brand Name: | Cisco |
| Manufacturer Part Number: | WS-C3850-12X48U-S |
| Manufacturer Website Address: | http://www.cisco.com |
| Manufacturer: | Cisco Systems, Inc |
| Marketing Information: | The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. |
| Product Line: | Catalyst |
| Product Model: | C3850-12X48U |
| Product Name: | Catalyst C3850-12X48U Ethernet Switch |
| Product Series: | 3850 |
| Product Type: | Ethernet Switch |
| Interfaces/Ports |
| Modular: | No |
| Port/Expansion Slot Details: | 48 x Gigabit Ethernet Network |
| Stack Port: | Yes |
| Total Number of Network Ports: | 48 |
| Management & Protocols |
| Manageable: | Yes |
| Media & Performance |
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Twisted Pair |
| Network Technology: | 10/100/1000Base-T |
| Miscellaneous |
| Green Compliant: | Yes |
| Network & Communication |
| Layer Supported: | 3 |
| Physical Characteristics |
| Compatible Rack Unit: | 1U |
| Depth: | 444.5 mm |
| Form Factor: | Rack-mountable |
| Height: | 44.5 mm |
| Weight (Approximate): | 8 kg |
| Width: | 487.7 mm |
| Power Description |
| Power Source: | Power Supply |
| Redundant Power Supply: | Yes |
