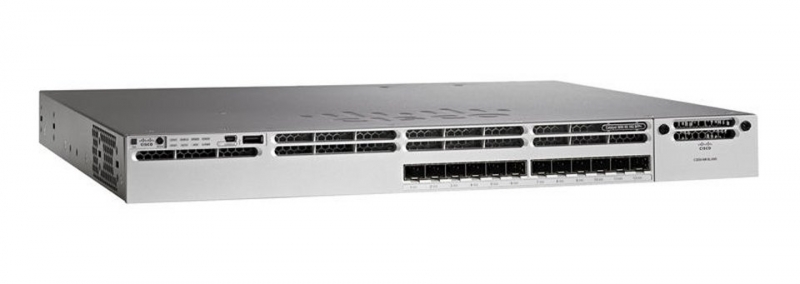

Cisco (ws-c3850-12xs-s) Cisco Catalyst 3850 12 Port 10g Fiber Switch Ip Base Ws-c3850-12xs-s
$16,411.00
| SKU: | 257214 |
|---|---|
| MPN: | WS-C3850-12XS-S Link |
| Manufacturer: | https://www.cisco.com/ |
| Brand: | Cisco |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Specifications
▼
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | WS-C3850-12XS-S |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Line: | Catalyst |
| Product Model: | WS-C3850-12XS |
| Product Name: | Catalyst WS-C3850-12XS Ethernet Switch |
| Product Series: | 3850 |
| Product Type: | Ethernet Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Number of SFP+ Slots: | 12 |
| Number of Total Expansion Slots: | 12 |
| Interfaces/Ports | |
|---|---|
| Modular: | No |
| Port/Expansion Slot Details: | 10 Gigabit Ethernet |
| 12 x 10 Gigabit Ethernet Expansion Slot | |
| Stack Port: | Yes |
| Uplink Port: | Yes |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Media & Performance | |
|---|---|
| Ethernet Technology: | 10 Gigabit Ethernet |
| Media Type Supported: | Optical Fiber |
| Network Technology: | 10GBase-X |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 1U |
| Depth: | 444.5 mm |
| Form Factor: | Rack-mountable |
| Height: | 44.5 mm |
| Weight (Approximate): | 8 kg |
| Width: | 449.6 mm |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
